MQP-R Channel foot

Rail support MQP-82-R #304048

MQ Rail Support Stainless Steel

IS_HNA_235_o.eps

Stainless steel (A4) channel foot for fastening channels to various base materials

Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish: Outdoor Plus - Stainless Steel
Material thickness: Channel connector: 4 mm, baseplate: 8 mm

Choose options

Pack size

8 pc

Product options

Quantity

Packs

Total Pieces

8

You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)

TWD 24,320

TWD 3,040 / 1

Technical Data

Material composition

Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L

Surface finish

Outdoor Plus - Stainless Steel

Material thickness

Channel connector: 4 mm, baseplate: 8 mm

Environmental conditions

Outdoor high pollution (C4 – high / C5)

Weight

1880 g

Documents

Features & Applications

Features

Flexibility – complete many different applications using few parts

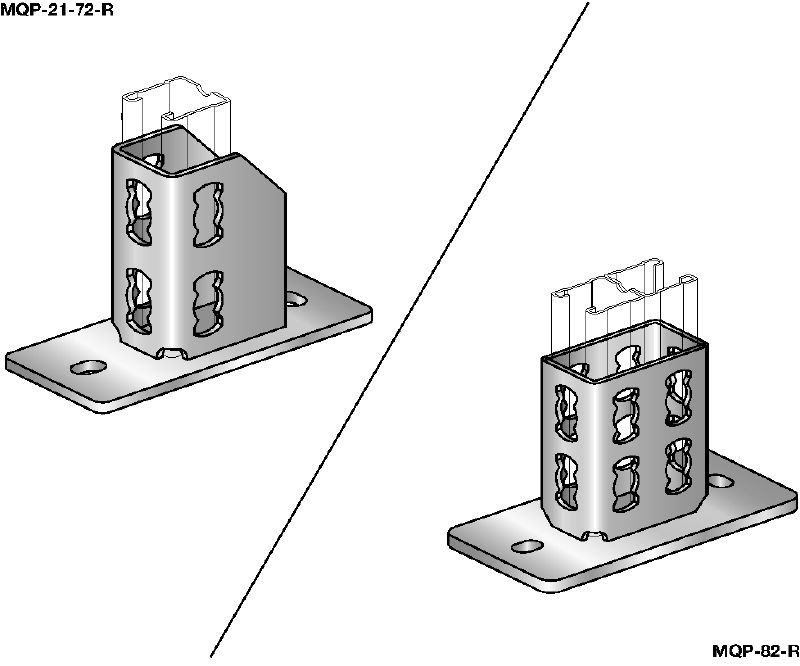

Acoustic insulation – when used with the MVI-P insulation plate for MQP-21-72 rail supports
Compatible with MQN-R push button channel connectors – for much faster, adaptable assembly

Applications

Connecting strut channels to various base materials
