HIS-RN Internally threaded sleeve

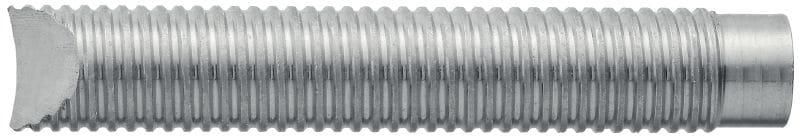

Int. threaded sleeve HIS-RN M20x205 A4 #258028

Configurator
Technical Data
Documents
Features & Applications
Related Products
Sleeve, internal threaded sleeve, female sleeve, HIS-RN, HIS, HISRN

High-performance internally threaded insert for capsule and injectable hybrid/epoxy anchors (A4 stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Drill bit diameter: 32 mm
  • PROFIS Software: Yes

Choose options

Material composition
  • Stainless steel A4-70
Anchor size - D
  • M20
Anchor length - L
  • 205 mm
Head configuration
  • Internally threaded
Pack size
  • 5 pc
 Product options
Quantity
Packs
Total Pieces
5
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 8,710
TWD 1,742 / 1

Technical Data

Material, corrosion
Stainless steel, A4
Drill bit diameter
32 mm
PROFIS Software
Yes
Approvals / Test reports
ETA
Internal thread size
20 mm
Thread engagement depth - min
20 mm
Thread engagement depth - max
50 mm

Documents

Approval document
Documentation
Technical information
Instruction for use
pdf ETA-16/0180 HIT-RE 500 V3 Anchor EC2 50 years , French, English [ 3.5 MB ]
pdf ETA 05/0255 for HVU adhesive capsules (ETAG 001-05, Option 7), German, English, Polish [ 12.3 MB ]
pdf ETA 16/0515 HVU2 capsule, English, German, Polish [ 5.6 MB ]
pdf ETA 11/0354 for HIT-CT 1 injection mortar for anchoring application, English [ 868.2 KB ]
pdf ETA-12/0084 HIT-HY-200-R Anchor EC2 & TR055 50 years, English, German [ 3.4 MB ]

Features & Applications

Features

  • Internally threaded to allow flush installation and easy removal of bolts
  • Features a chisel tip to cut and mix the Hilti HVU capsule (to be installed using the HIS-S setting tool)
  • Designed for use in solid concrete with Hilti HVU capsules and various other Hilti injectable adhesive mortars

Applications

  • Suitable for internally-threaded fastenings in concrete using various Hilti injectable adhesive mortars and Hilti HVU capsules
