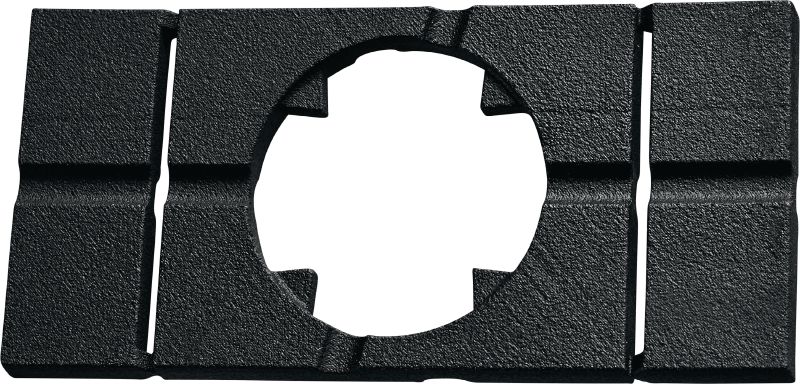

FX 3 Support plates
Support plates to create a stable base for narrow material when fastening with F-BT-MR SN fusion threaded studs
- Application: Multi-purpose fastening (electrical, mechanical elements and support system fastenings)
- For use with (tools): FX 3
- Material composition: Ultramid® A3WG10
Customers also searched for support plates or stabilizing plates.
Choose options
Length
- 100 mm
Pack size
- 200 pc
Quantity
Packs
Total Pieces
1
Discounted (before tax)
Technical Data
Application
Multi-purpose fastening (electrical, mechanical elements and support system fastenings)
For use with (tools)
FX 3
Material composition
Ultramid® A3WG10
Environmental Conditions
Outdoor, areas with heavy industrial pollution
Base materials
Carbon steel
Documents
pdf Cordless Stud Fusion (CSF) Technical Manual 09/2025, English [ 6.2 MB ]
pdf Cordless Stud Fusion (CSF) Technical Manual 05/2023, Revision 2 02/2025, English [ 5.8 MB ]
pdf Cordless Stud Fusion (CSF): F-BT Visual Examination Catalogue - OTR/5724148/03, 2025-05-02, including grinding, English [ 1.3 MB ]
pdf Cordless Stud Fusion (CSF): F-BT Visual Examination Catalogue - OTR 5724148/02, 2022-11-14 , English, Arabic, French, German, Indonesian, Italian, Korean, Spanish, Thai, Turkish, Vietnamese [ 3.6 MB ]
Features & Applications
Features

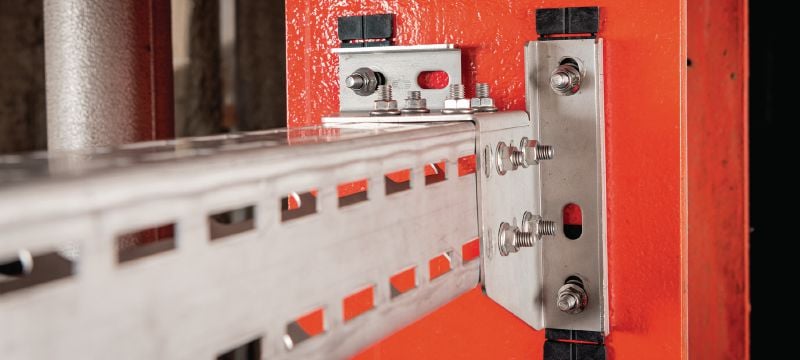

- Provides a stable base for fastening narrow material when using F-BT studs with sealing washer
- Helps you maximize the performance of multiple studs and fastened materials (suitable for Stud Fusion only)
Applications
- Fastening to steel in polluted/corrosive environments (up to C5) involving higher tensile loads or thinner base materials
- Steel fastening in oil and gas offshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
- Steel fastening in oil and gas onshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
- Shipbuilding – false ceiling fixing, inspection grids, water spray separators, outfitting, supports for electric/piping/ventilation services
For approval or certificate information, please see individual items.
