PROFIS Engineering allows you to calculate anchor arrangements for up to 99 anchors.

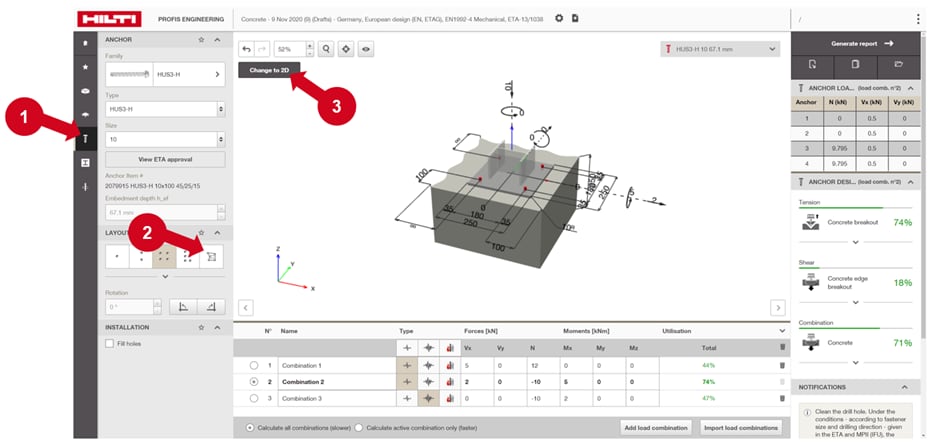

Go to the anchor tab (1), and select custom (2), which will take you to the 2D editor. Alternatively, go directly to the 2D editor (3).

Select “Matrix”, “Rectangular” or “Circular” options (4).

Depending on selected option, PROFIS Engineering will ask you to add the number of rows / columns or number of anchors and spacing / diameter.
