MC-PI OC-A

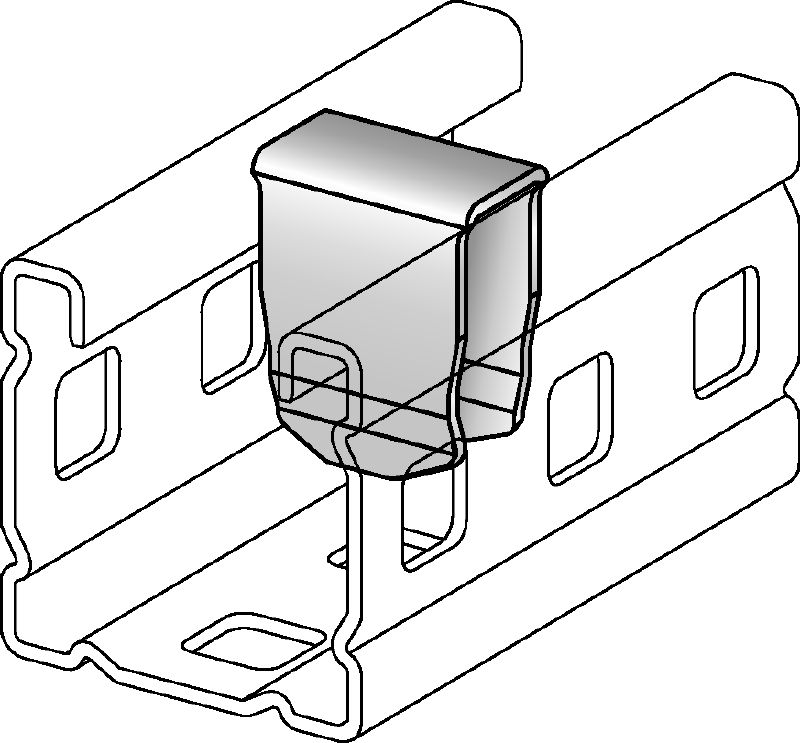

Hot-dip galvanized (HDG) channel stiffening insert for use where threaded components/bolts are fitted through the sides of MC-3D installation channel outdoors
- Material composition: Structural steel with minimum yield strength 235 N/mm2
- Surface finish: Hot-dip galvanized, 56 µm - ASTM A153
Choose options
Pack size
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted (before tax)
From TWD 1,200
Technical Data
Material composition
Structural steel with minimum yield strength 235 N/mm2
Surface finish
Hot-dip galvanized, 56 µm - ASTM A153
Features & Applications
Features
- Easy-to-use single part
- Non-protruding and flush with channel
Applications
- For use where bolts and threaded rods are fitted through MC channels using the side faces
For approval or certificate information, please see individual items.
