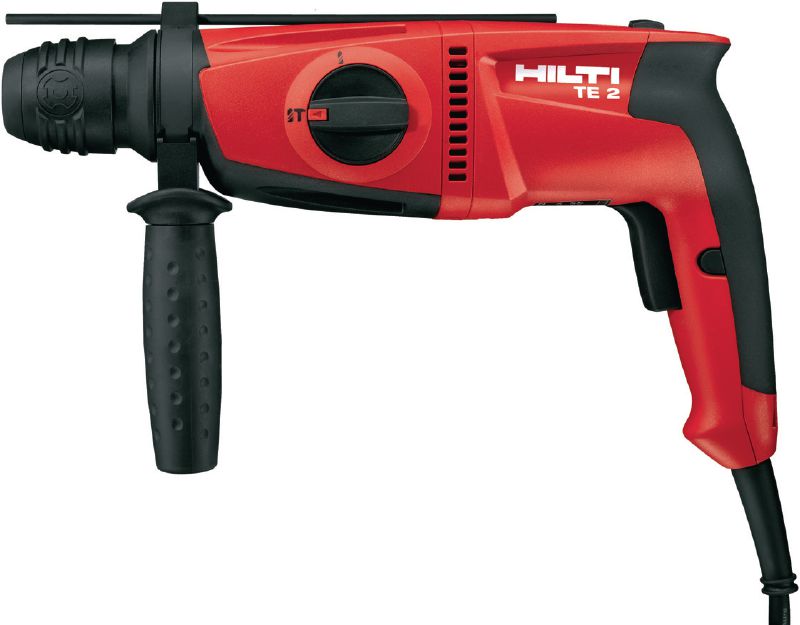

TE 2 Rotary hammer

Compact dual-mode, pistol-grip SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling

Weight according EPTA-Procedure 01/2003 without battery: 2.7 kg
Optimum Hammer drilling range: 4 - 12 mm
Single impact energy: 1.8 J

Customers also searched for SDS plus rotary hammer, concrete hammer drill, hilti hammer drill, hammer drill or SDS plus hammer drill.

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)

From TWD 7,200

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

2.7 kg

Optimum Hammer drilling range

4 - 12 mm

Single impact energy

1.8 J

Working mode

Hammer drilling, Drilling

Hammer drilling diameter range

4 - 22 mm

Hammer drilling RPM

1200 rpm

Full hammering frequency

4600 impacts/minute

Functionality

Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

12.1 m/s² ¹

A-weighted emission sound pressure level

94 dB (A) ²

Dimensions (LxWxH)

352 x 89 x 203 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

Two-mode SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling
Sturdy motor with high load rating for maximum reliability
Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
Electronic switch for precise drilling
360° side handle adjusts easily for preference or use in tight spaces
