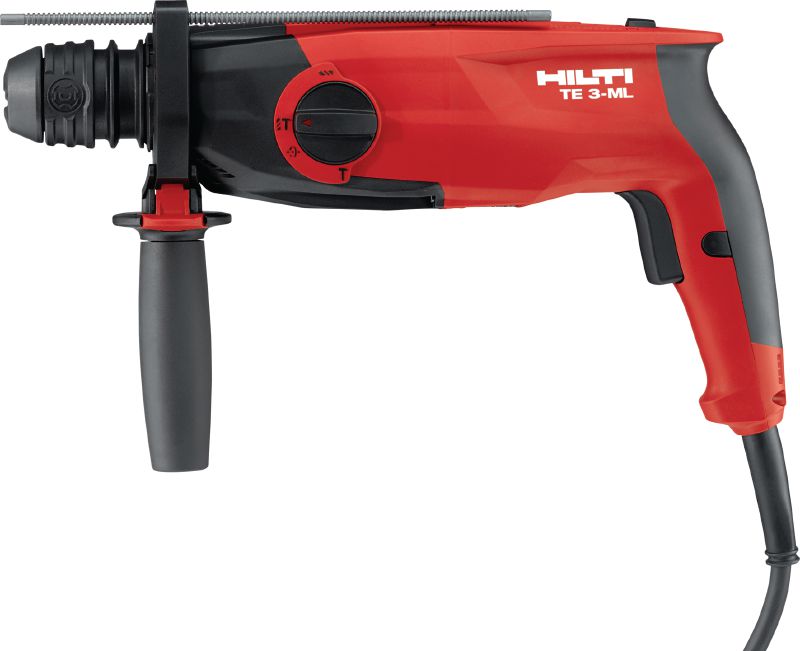

TE 3-ML Rotary hammer

Powerful pistol-grip, triple-mode, multi-purpose SDS Plus (TE-C) rotary hammer – with chipping function and easily changeable brushes

Customers also searched for martelete, rotomartillo, sds-plus or sds plus.

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)

From TWD 12,496

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

3.1 kg

Optimum Hammer drilling range

6 - 16 mm

Single impact energy

2.1 J

Working mode

Chiseling, Drilling, Hammer drilling, Chisel setting

Hammer drilling diameter range

5 - 28 mm

Hammer drilling RPM

1070 rpm

Full hammering frequency

4860 impacts/minute

Functionality

Chipping, 2nd gear for metal drilling, Removable chuck, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

15.6 m/s² ¹

Triaxial vibration for chiseling into concrete

12.2 m/s² ²

A-weighted emission sound pressure level

93 dB (A) ³

Dimensions (LxWxH)

377 x 88 x 204 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling, rotary-only drilling and chiseling
Sturdy motor provides high performance and overload protection
Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
360° side handle with quick-set depth gauge – easily adjustable for a firm grip in any position, even in tight spaces
Electronic switch for precise hole-starting
