TE 3-CL Rotary hammer

Rotary hammer TE 3-CL 110V case #2122607

Configurator
Technical Data
Documents
Features & Applications
Related Products
TE 3-CL
Rotary_hammer,_TE_3-ML,_TE_3-CL,_DCD

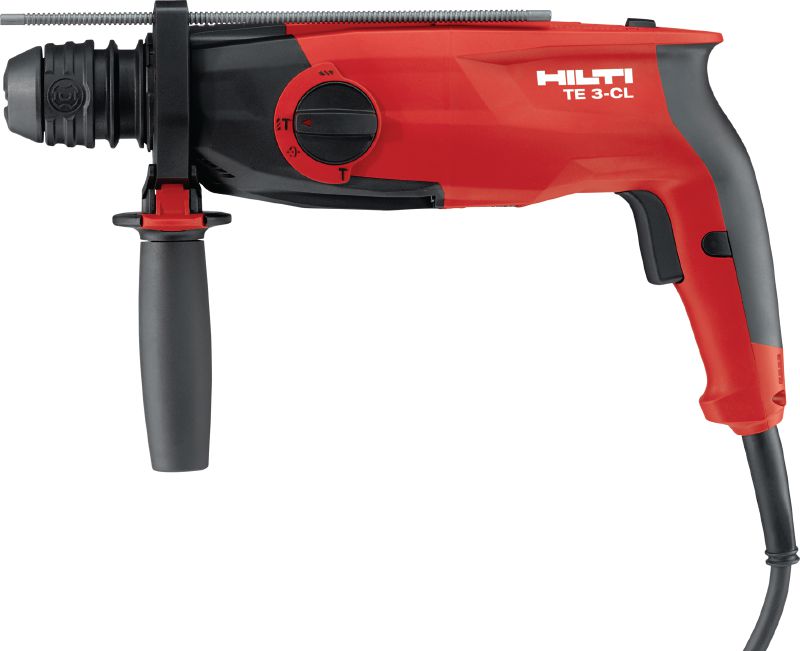

Powerful pistol-grip, triple-mode SDS Plus (TE-C) rotary hammer – with chipping function and easily changeable brushes

  • Weight according EPTA-Procedure 01/2003 without battery: 3 kg
  • Optimum Hammer drilling range: 6 - 16 mm
  • Single impact energy: 2.1 J

Customers also searched for martelete, rotomartillo, sds-plus or sds plus.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 11,440
TWD 11,440 / 1

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
3 kg
Optimum Hammer drilling range
6 - 16 mm
Single impact energy
2.1 J
Working mode
Chiseling, Drilling, Hammer drilling, Chisel setting
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
1070 rpm
Full hammering frequency
4860 impacts/minute
Functionality
Chipping, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
14.6 m/s² 1
Triaxial vibration for chiseling into concrete
11.2 m/s² 2
A-weighted emission sound pressure level
93 dB (A) 3
Rated input power
850 W
Dimensions (LxWxH)
377 x 88 x 204 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (ZH) [ 1 MB ]

Features & Applications

Features

  • Triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling, rotary-only drilling and chiseling
  • Sturdy motor provides high performance and overload protection
  • Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
  • 360° side handle with quick-set depth gauge – easily adjustable for a firm grip in any position, even in tight spaces
  • Electronic switch for precise hole-starting

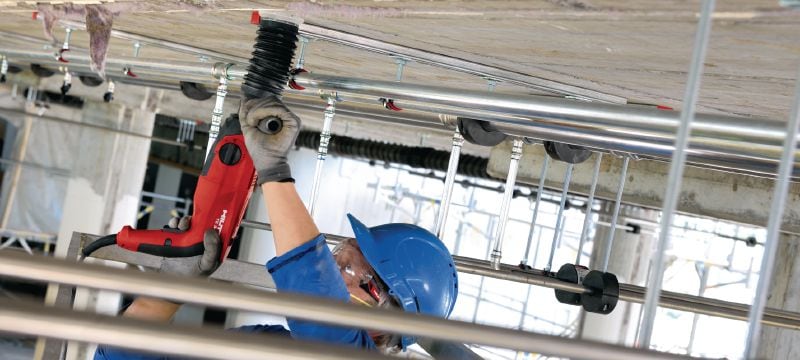

Applications

  • Drilling and hammer drilling in concrete and masonry
  • Corrective chiseling and light channel chasing in concrete and masonry
  • Drilling in wood and steel using the optional smooth-shank chuck adapter
  • Cutting socket recesses in masonry
  • Driving screws using optional bit holders
