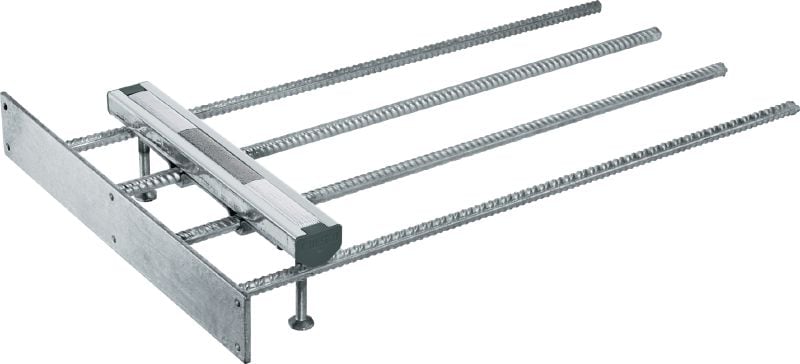

HAC-V Top-of-slab rebar channel
Rebar HAC-V 50 106/350 F EDGE 4" #2366396
Cast-in anchor channels in standard sizes and lengths for top-of-slab applications
- Material, corrosion: Carbon Steel, Hot-Dip Galvanized
- Channel profile: HAC-V 40, HAC-V 35, HAC-V 50
- PROFIS Software: Yes
Choose options
Channel profile
- HAC-V 40, HAC-V 35, HAC-V 50
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted (before tax)
TWD 3,186
TWD 3,186 / 1
Technical Data
Material, corrosion
Carbon Steel, Hot-Dip Galvanized
Channel profile
HAC-V 40, HAC-V 35, HAC-V 50
PROFIS Software
Yes
Documents
pdf Operating Instruction HAC Edge, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.2 MB ]
Features & Applications
Features
- Helps overcome many limits of concrete capacity or slab geometry
- Confinement of concrete edge allows for designs with higher load requirements
- Suitable for small edge distances and thin concrete slabs
- Available for various edge distances and preassembled for quicker installation
- Upgraded performance – tension resistance up to 20% higher than previous HAC anchor channels
Applications

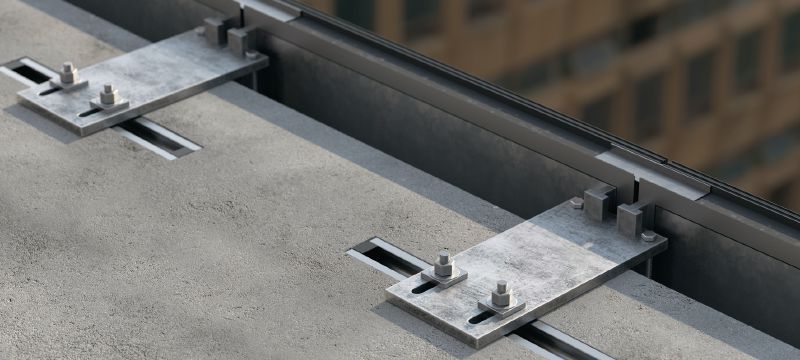

- Installing curtain wall brackets in top-of-slab position with anchor channels
- Fastening to thin concrete slabs
- Fastening of balustrade base plates on top of thin concrete members
- Seismic-relevant applications and 3D loads
