HAC-V-T Top-of-slab anchor channel
Rebar HAC-V-T 50 144/350 F EDGE 4" #2366621
Serrated cast-in anchor channels in custom sizes and lengths for top-of-slab installations catering to 3D loads
- Material, corrosion: Carbon Steel, Hot-Dip Galvanized
- PROFIS Software: Yes
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted (before tax)
TWD 2,992
TWD 2,992 / 1
Technical Data
Material, corrosion
Carbon Steel, Hot-Dip Galvanized
PROFIS Software
Yes
Documents
pdf Operating Instruction HAC Edge, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.2 MB ]
Features & Applications
Features
- Confinement of concrete edge allows for designs with higher load requirements
- Helps overcome many limits of concrete capacity or slab geometry
- Design with PROFIS Anchor Channel software β an efficient and powerful planning tool based on the ESR-3520 compliance evaluation as well as AC232 and ACI 318 requirements
- Suitable for small edge distances and thin concrete slabs
- Available for various edge distances and pre-assembled for quicker installation
Applications

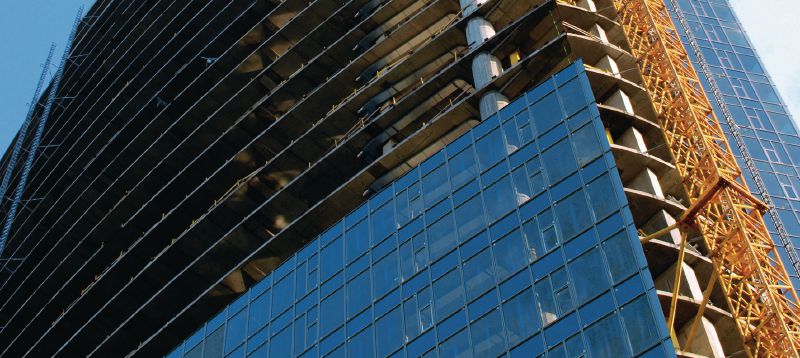

- Installing curtain wall brackets in top-of-slab position with anchor channels
- Fastening to thin concrete slabs
- Seismic-relevant applications and 3D loads
