HSC-I Shallow undercut anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
6143.tif
HSC-I_Anker_app01_s.tif
HDA

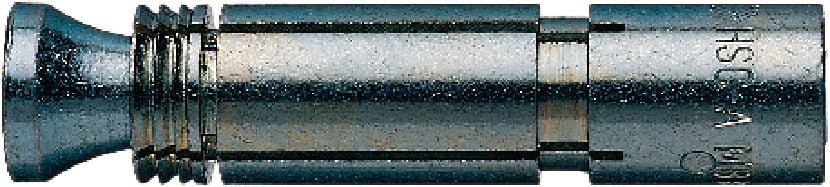

Ultimate-performance shallow undercut anchor (carbon steel, internal thread)

  • Material, corrosion: Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
  • Head configuration: Internally Threaded
  • Approvals / Test reports: ETA, Fire

Choose options

Anchor size - D
  • M6
  • M8
  • M10
  • M12
Standard embedment depth
  • 40 mm
  • 50 mm
  • 60 mm
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
From TWD 2,574

Technical Data

Material, corrosion
Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
Head configuration
Internally Threaded
Approvals / Test reports
ETA, Fire
PROFIS Software
Yes
Type of fixing
Pre-fastening

Documents

Approval document
Brochure
Technical information
Instruction for use
pdf ETA 02/0027 for HSC undercut anchor, French, English, German, Polish [ 3.5 MB ]
pdf BZS D 06-601 for HSC self cutting undercut anchor, English [ 48.6 KB ]

Features & Applications

Features

  • Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
  • Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
  • Requires a plain cylindrical hole to be drilled, no separate undercutting operation

Applications

  • Safety-relevant, medium-duty fastenings in cracked or uncracked concrete, especially where shallow embedment and/or small edge distance or close spacing is required

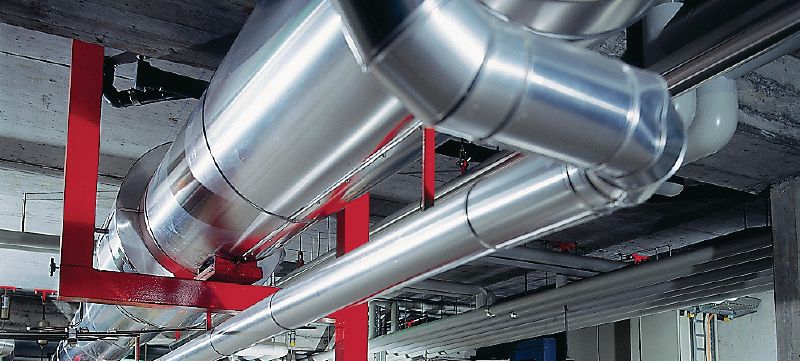

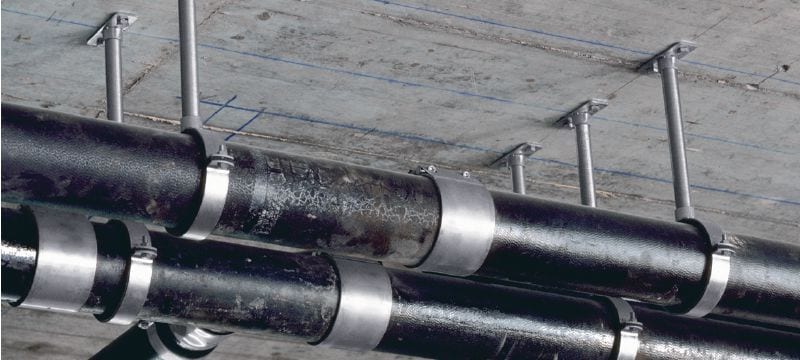

  • Examples: stair hand rails, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.

For approval or certificate information, please see individual items.
