HUS4-CR Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L068902.tif
Cropped application image of the impact wrench SIW 6AT-22 and Adaptive Torque Module SI-AT-22 with HUS4 screw anchor.

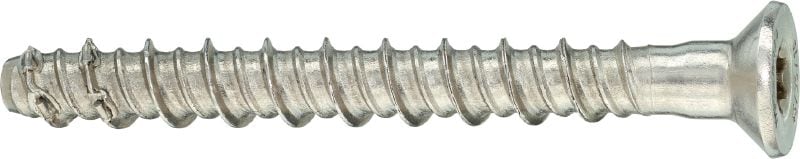

High-performing countersunk head screw anchor for fastening to concrete (stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Countersunk
  • Approvals / Test reports: ETA, Fire

Choose options

Anchor size - D
  • 8 mm
  • 10 mm
Anchor length - L
  • 65 mm
  • 75 mm
  • 85 mm
  • 95 mm
  • 105 mm
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
From TWD 9,592

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Countersunk
Approvals / Test reports
ETA, Fire
Base materials
Concrete (aerated), Concrete (cracked), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Not Possible
Cleaning procedures
Manual Cleaning, Non Cleaning
PROFIS Software
Yes
Environmental conditions
Dry indoor, Outdoor, low to moderate pollution (C3), Outdoor with heavy industrial pollution
Material composition
Stainless steel, A4

Documents

Approval document
Certificate
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]
pdf ETA 10/0005 for HUS3 screw anchor size 6 multiple applications, German, English, French [ 11.1 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German [ 3.3 MB ]

Features & Applications

Features

  • Removable and high corrosion resistance – ideal for outdoor applications
  • Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
  • Cost-saving design – pair with PROFIS Engineering software to optimize designs and reduce material costs

Applications

  • Fastening non-structural baseplates – such as handrails, staircases and balustrades
  • Suitable for use in uncracked and cracked concrete
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1) and fire
  • Suitable for dry indoor and outdoor use, including high corrosion environments

For approval or certificate information, please see individual items.
