HST3 Wedge anchor

Stud anchor HST3 M16x220 120/100 #2105861

Configurator
Technical Data
Documents
Features & Applications
Related Products
Safety Stud Anchor HST3 M12x115 40/20
HSA stud anchor
HSL-3-G
23428.tif
HST3 in Railing, Hand-railing
L080265.tiff

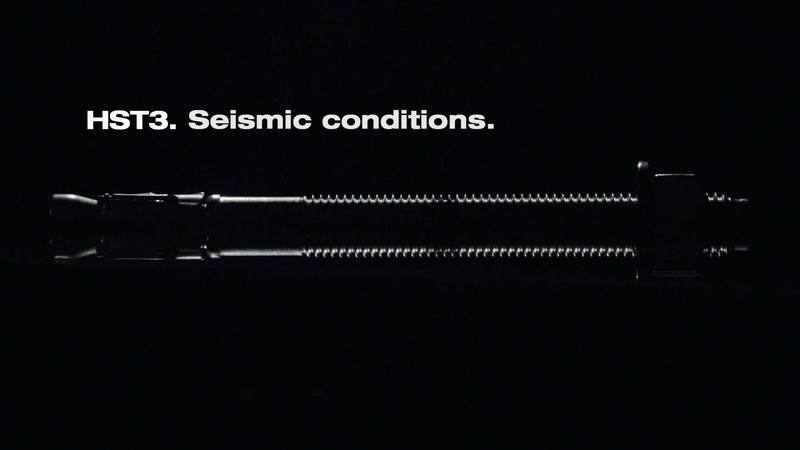

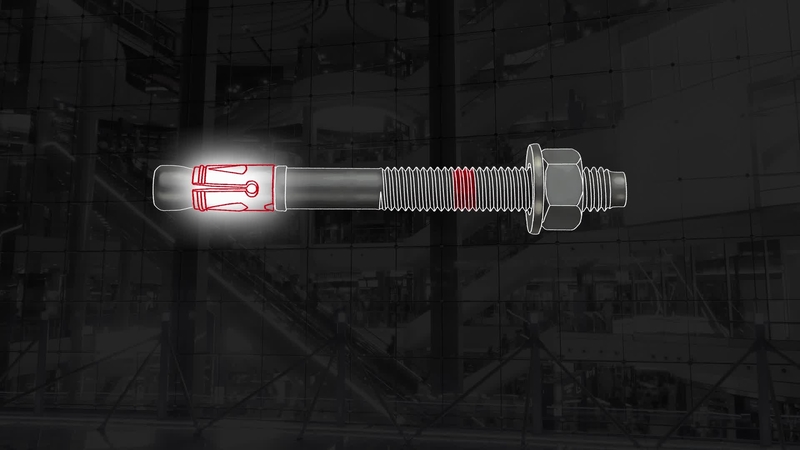

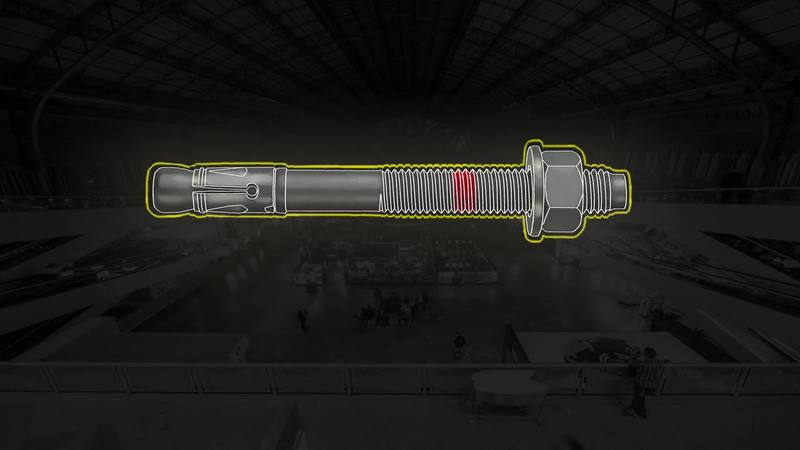

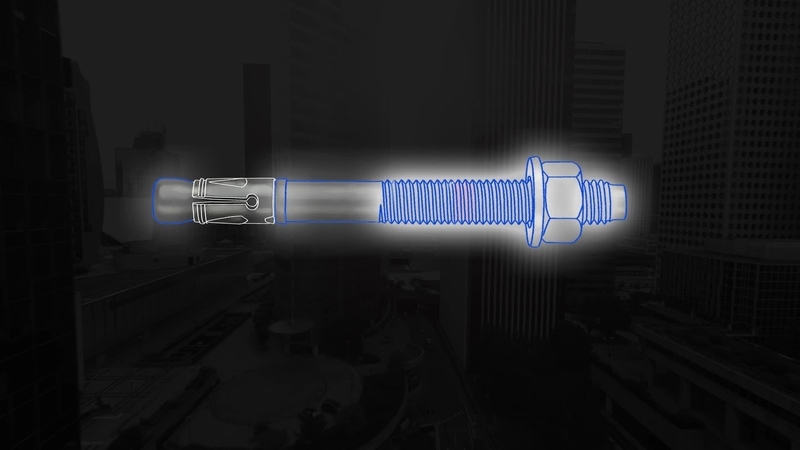

Ultimate-performance wedge anchor for demanding static and seismic loads in cracked concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
  • Head configuration: Externally threaded
  • Approvals / Test reports: ETA, Fire, Seismic

Choose options

Anchor size - D
  • M16
Anchor length - L
  • 220 mm
Pack size
  • 12 pc
 Product options
Quantity
Packs
Total Pieces
12
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 4,150
TWD 346 / 1

Technical Data

Material, corrosion
Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
Head configuration
Externally threaded
Approvals / Test reports
ETA, Fire, Seismic
PROFIS Software
Yes

Documents

Technical information
Approval document
Brochure
Sustainability Documentation
Operating Instruction
pdf Technical data sheet for the HST3 metal expansion anchor, English [ 1.7 MB ]
pdf Solutions for fastening: Improved design for anchors under shear loading, English [ 1.6 MB ]

Features & Applications

Features

  • More economical, optimized anchor designs – larger range of embedment depths available and flexible edge and spacing, making more economical designs using smaller baseplates and façade brackets a possibility
  • Faster and easier to install correctly –requires no hole cleaning (M8-M20) and ready for automated pre-tensioning with a Hilti Adaptive Torque tool (M8-M16)
  • Design support available – use PROFIS Engineering Suite to simplify steel-to-concrete connection design, or contact your local Hilti Engineering Team for advice on more complex projects
  • Easier inspections – head marking showing anchor type and length to simplify quality control after setting

Applications

  • Galvanized carbon steel wedge anchor for all safety-relevant fastenings in cracked and uncracked concrete
  • All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements
  • Fastening baseplates, handrails, façade systems, machinery or racking to concrete
  • Suitable for use in dry, indoor environments
