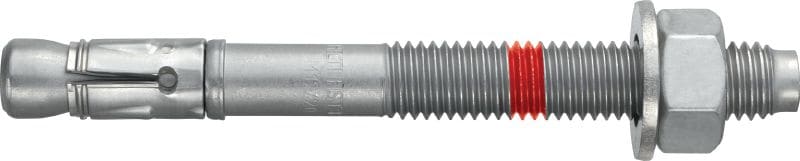

HST3-R Stainless steel wedge anchor

Configurator

Technical Data

Documents

Features & Applications

Choose options

Anchor size - D

Anchor length - L

80 mm
125 mm
135 mm
145 mm
170 mm
200 mm

Pack size

5 pc
12 pc
25 pc
50 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)

From TWD 12,144

Technical Data

Material, corrosion

Stainless steel, A4

Head configuration

Externally threaded

Approvals / Test reports

ETA, Seismic

Base materials

Concrete (cracked), Concrete (uncracked)

Installation tools

DD 30-W Core drill

PROFIS Software

Yes

Environmental conditions

Indoor with temporary condensation

Documents

Technical information

Approval document

Brochure

pdf Technical data sheet for the HST3 metal expansion anchor, English [ 1.7 MB ]

Download

pdf Solutions for fastening: Improved design for anchors under shear loading, English [ 1.6 MB ]

Download

Features & Applications

Features

More economical, optimized anchor designs – larger range of embedment depths available and flexible edge and spacing, making more economical designs using smaller baseplates and façade brackets a possibility
Faster and easier to install correctly –requires no hole cleaning (M8-M20) and ready for automated pre-tensioning with a Hilti Adaptive Torque tool (M8-M16)
Design support available – use PROFIS Engineering Suite to simplify steel-to-concrete connection design, or contact your local Hilti Engineering Team for advice on more complex projects
Easier inspections – head marking showing anchor type and length to simplify quality control after setting

Applications

Stainless steel wedge anchor for all safety-relevant fastenings in cracked and uncracked concrete in corrosive environments
All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

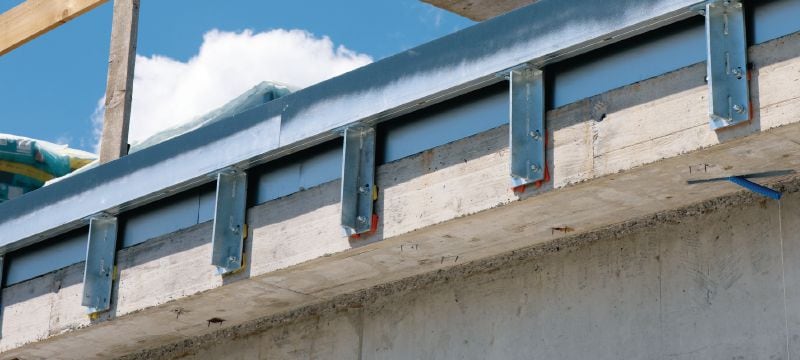

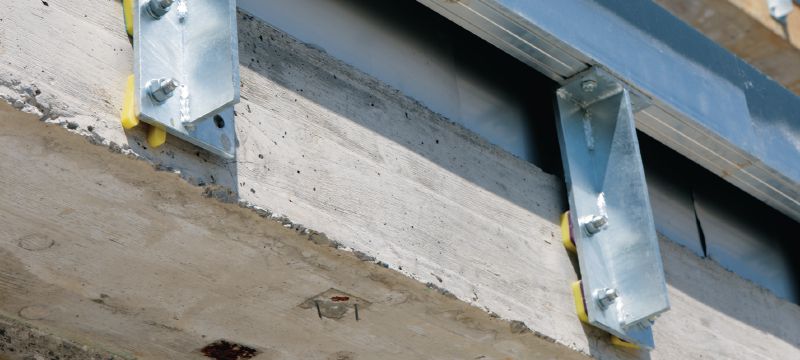

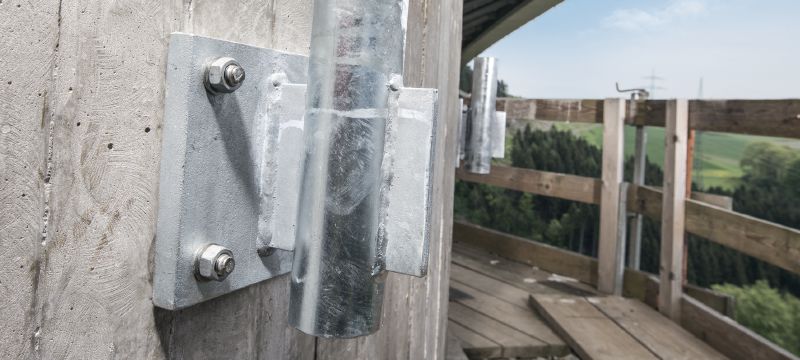

Fastening baseplates, handrails, façade systems, machinery or racking to concrete when corrosion resistance is required
Suitable for use in corrosive environments

For approval or certificate information, please see individual items.
