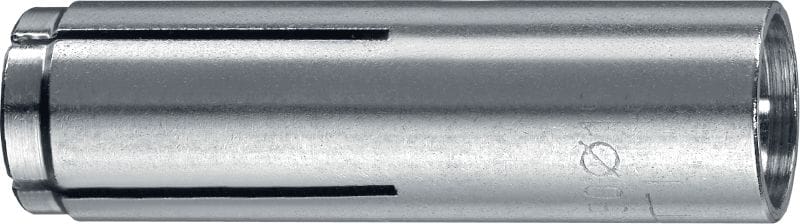

HKD-D Drop-in anchor

Flush anchor HKD-D M12x50 #385459

Configurator
Technical Data
Documents
Features & Applications
Related Products
Flush anchor
30333.tif
HKD-D
DD 120

Manual-set drop-in anchor for fastening core drilling machines and wall saws to concrete (carbon steel)

  • Approvals / Test reports: N/A
  • Material, corrosion: Carbon steel, zinc-plated
  • PROFIS Software: No

Choose options

Internal thread size
  • 12 mm
Anchor length - L
  • 50 mm
Anchor size - D
  • M12
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 1,707
TWD 34 / 1

Technical Data

Approvals / Test reports
N/A
Material, corrosion
Carbon steel, zinc-plated
PROFIS Software
No
Drill bit diameter
16 mm

Documents

pdf Instruction for use HKD-D M12x50, Chinese, Vietnamese, Ukrainian, Turkish, Thai, Swedish, Slovenian, Slovak, Sardinian, Russian, Romanian, Portuguese, Polish, Norwegian, Dutch, Malay, Latvian, Lithuanian, Korean, Kazakh, Japanese, Italian, Hungarian, Croatian, French, Finnish, Estonian, Spanish, English, Greek, German, Danish, Czech, cn, Bulgarian, Arabic [ 354.5 KB ]

Features & Applications

Features

  • No collar – drop-in anchor can be set at greater depth
  • No damage to the thread when tapping in and expanding
  • “Intelligent” stepped expansion piece adapts to suit materials of different hardness
  • Visual check for correct setting

Applications

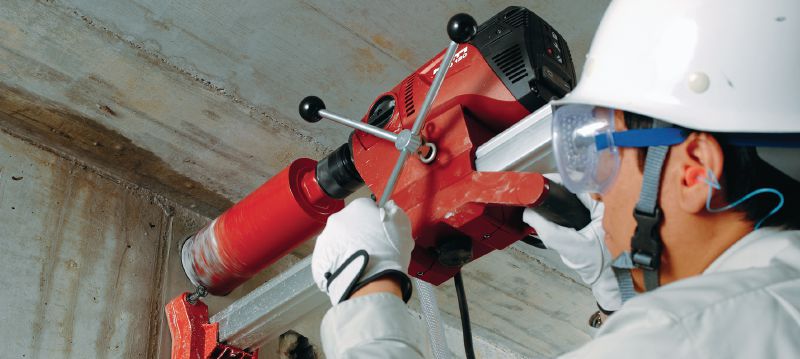

  • Fastening diamond core drilling rigs and wall saws
