HST2-R Wedge anchor

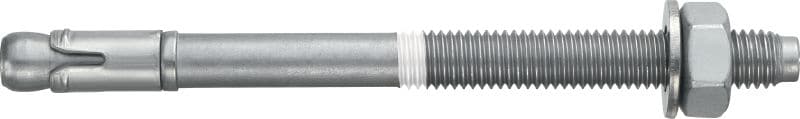

Stud anchor HST2-R M10x90/10 #2108163
High-performance wedge anchor for everyday static loads in cracked concrete (A4 stainless steel)
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / Test reports: ETA, Fire, FM (Factory Mutual)
Choose options
Anchor size - D
- M10
Anchor length - L
- 90 mm
Pack size
- 50 pc
Quantity
Packs
Total Pieces
50
Discounted (before tax)
TWD 6,336
TWD 127 / 1
Technical Data
Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / Test reports
ETA, Fire, FM (Factory Mutual)
PROFIS Software
Yes
Documents
Features & Applications
Features
- The optimized design of the expansion cone and wedge combined with special steel and coatings ensure appropriate performance in cracked and uncracked concrete
- Suitable for installation with SIW 6AT-A22 and SI-AT-A22 module for higher productivity and safety
- Automatic hole cleaning with hollow drill bits in combination with Hilti vacuum cleaners
- Suitable for use in hammer-drilled and diamond-cored holes (DD EC-1 and DD-30W)
Applications

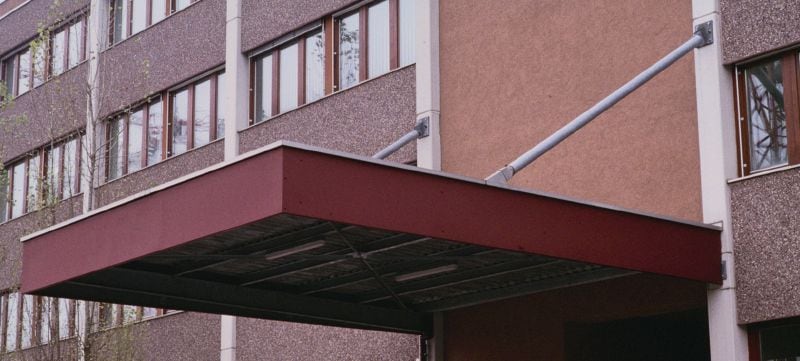

- Wide range of safety-relevant applications
- Particularly suited to safety-relevant applications in corrosive environments

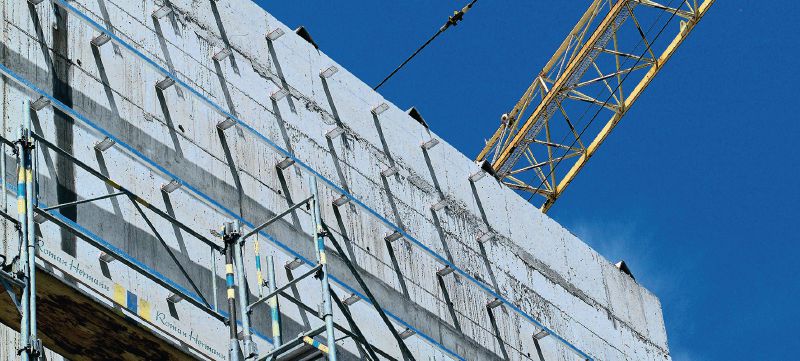

- Facades

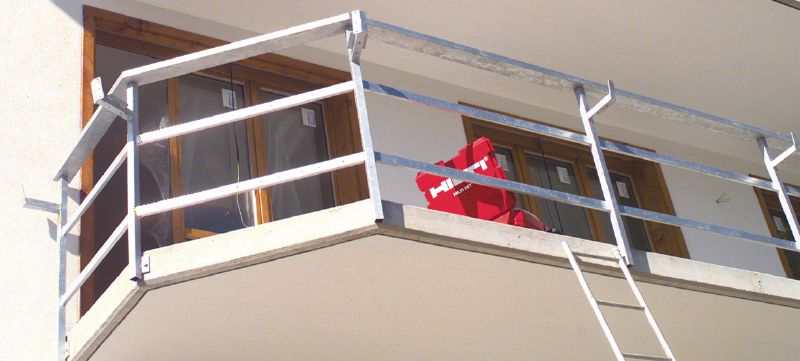

- Hand rails
