Nuron

SIW 4AT-22 ½” Cordless impact wrench

Cordl. imp. wrench SIW 4AT-22 1/2'' case #2291205

Configurator
Technical Data
Documents
Features & Applications
Related Products

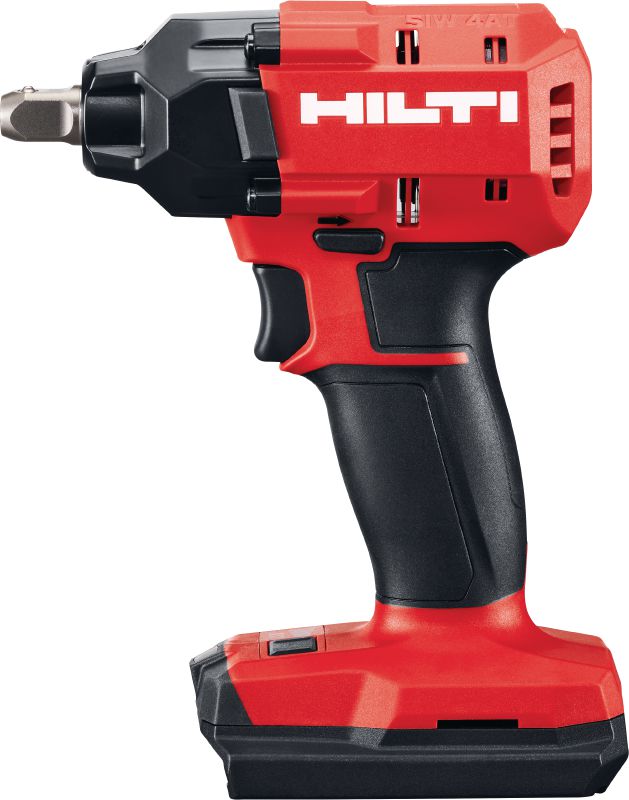

SIW 4AT-22 cordless impact wrench, tool body
Image of the SIW 4AT-22 tool body with the B22-110 battery and KH used for screw anchoring applications with HUS4 screw anchors.
Image showing the SIW 4AT-22 tool body with the B22-85 battery for anchoring application using stud anchors and the AT module SI-AT-22.
Image showing the SIW 4AT-22 tool body with the B22-110 battery for anchoring application using stud anchors and the AT module SI-AT-22.
Image showing the SIW 4AT-22 tool body with B22-110 battery for installation of the MT system with the AT module SI-AT-22.
SIW 4AT-22 tool body with the B22-85 battery for wood application.

Compact-class cordless impact wrench with the ultimate balance of power and handling (Nuron battery platform)

  • Anvil type: 1/2" detent pin
  • Maximum torque: 90 Nm (1); 135 Nm (2); 213 Nm (3)
  • Nut busting torque: 338 Nm

Customers also searched for cordless impact wrench, impact wrench, battery impact wrench, Nuron impact wrench or Nuron battery impact wrench.

Customize your kit

Tool Body
Tool body with case
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 13,590

Technical Data

Anvil type
1/2" detent pin
Maximum torque
90 Nm (1); 135 Nm (2); 213 Nm (3) 1
Nut busting torque
338 Nm
Full hammering frequency
3500 impacts/minute
Number of gears
3
No load RPM
gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2300 rpm
Dimensions (LxWxH)
152 x 68 x 215 mm
Tool body weight
1.03 kg
A-weighted emission sound pressure level
96 dB (A) 2
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 4AT-22 (01), Arabic, cn, Danish, English, Spanish, Finnish, Japanese, Kazakh, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Features & Applications

Features

  • The ideal cordless impact wrench for non-structural fastening, such as MEP supports and handrails
  • Longer tool lifetime – brushless motor means the impact wrench lasts longer and gets more work done per charge
  • Automate precise torquing – add the optional SI-AT-22 Adaptive Torque Module to save time when installing compatible anchors in line with approvals
  • Faster anchor setting with more control – three speed settings and improved LED light
  • On the Nuron battery platform – cordless impact wrenches without compromise thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow

Applications

  • Bolting steel – such as for handrails, racking and machinery (M8-M16 diameter)
  • Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (6-8 mm diameter)
  • Lag bolting in wood – such as for wooden roofs or temporary structures (8-10 mm diameter)
  • Setting wedge anchors in concrete (M8-M16 diameter)
  • Driving screws into 8 mm and 10 mm HRD frame anchors in masonry and concrete
