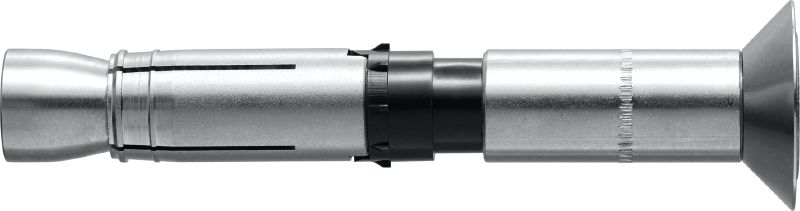

HSL-3-SKR Heavy-duty wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
HSL-3 stainless A4 with countersunk head finish

Ultimate-performance removable heavy-duty wedge anchor with approvals for fire, seismic and cracked concrete (A4 stainless steel, countersunk)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Countersunk
  • Approvals / Test reports: ETA, Fire, Seismic

Choose options

Anchor size - D
  • M8
  • M10
  • M12
Anchor length - L
  • 80 mm
  • 90 mm
  • 104 mm
  • 122 mm
Pack size
  • 20 pc
  • 40 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
From TWD 28,864

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Countersunk
Approvals / Test reports
ETA, Fire, Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS Software
Yes

Documents

Approval document
Brochure
Operating Instruction
pdf ETA 02/0042 for HSL-3 heavy-duty expansion anchor, English, German, French, Polish [ 6 MB ]

Features & Applications

Features

  • The flat countersunk head with hexagon socket lies flush with the fixture for discreet fastenings and/or avoidance of tripping hazards
  • Backed by both international ETA and ICC-ESR approvals
  • Easily removable for temporary fastening or retrofitting

Applications

  • Structural steel
  • Safety-critical steel elements
  • Balustrades

For approval or certificate information, please see individual items.
