S-MD 23 Z Self-drilling metal screws

Self-drill screw S-MD23Z 6,3x25 #413432

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-MD 23Z 6.3x22

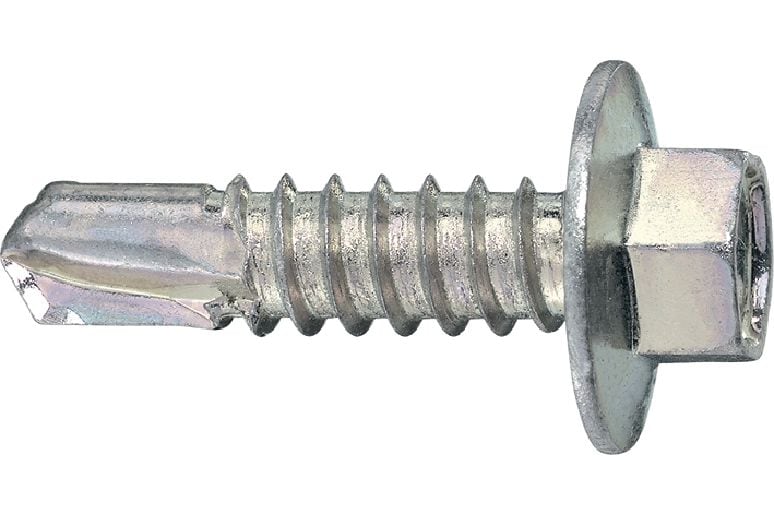

Self-drilling screw (zinc-plated carbon steel) with pressed-on flange for medium-thick metal-to-metal fastenings (up to 6 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 15 mm
  • Base materials: Carbon steel, HTU (cast-in channel)
premium

Choose options

Thickness fastened range MF
  • 2.6 - 13 mm
Drilling capacity range DC
  • 2.6 - 6 mm
Length
  • 25 mm
Pack size
  • 500 pc
 Product options
Quantity
Packs
Total Pieces
500
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 2,685
TWD 5 / 1

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
15 mm
Base materials
Carbon steel, HTU (cast-in channel)
Environmental Conditions
Dry indoor
Screw diameter d
6.3 mm
Length
25 mm
Screw-head diameter
10 mm
Product Class
Premium
Washer type
Pressed-on

Documents

Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf Powder-actuated fasteners and fastening screws in steel construction, Reprint from Stahlbau-Kalender 2019, Ernst & Sohn, English [ 7 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • New drill tip for fast drilling and low failure rate, even in hard steel
  • EPDM rubber washer – creates a more reliable seal against water
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • Especially suitable for highly stressed connections, such as roofing sheets or decking sheets where not exposed to the weather

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanized carbon steel for fastening in dry, indoor environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)
  • Especially suitable for cassette system walls on HTU cast-in channels, C/U profiles etc.
