PM 40-MG Multi-line laser

Multi line laser PM 40-MG #2152386

Configurator
Technical Data
Documents
Features & Applications
Related Products

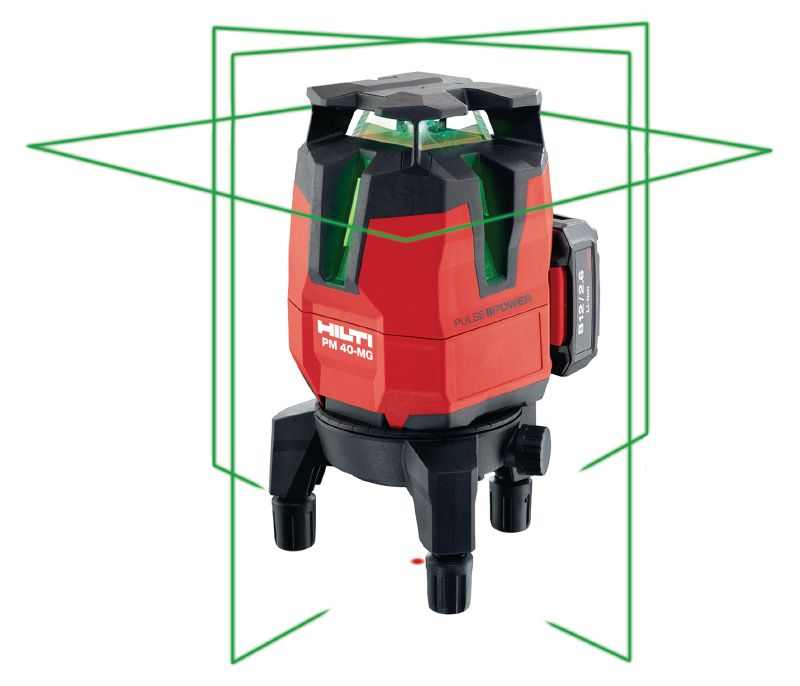

PM 40-MG with all lines and the plumbing point

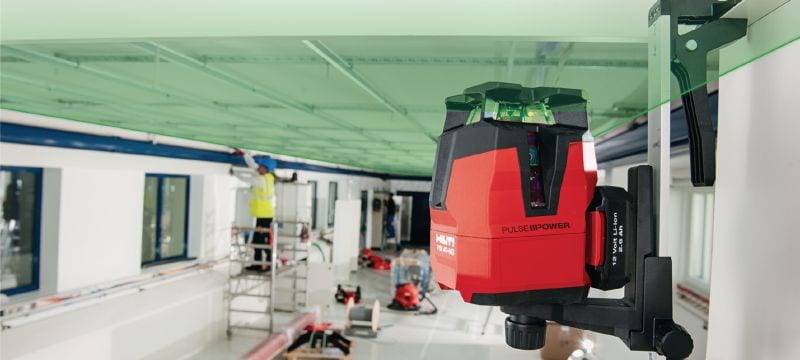

PM 40-MG suspended ceiling leveling

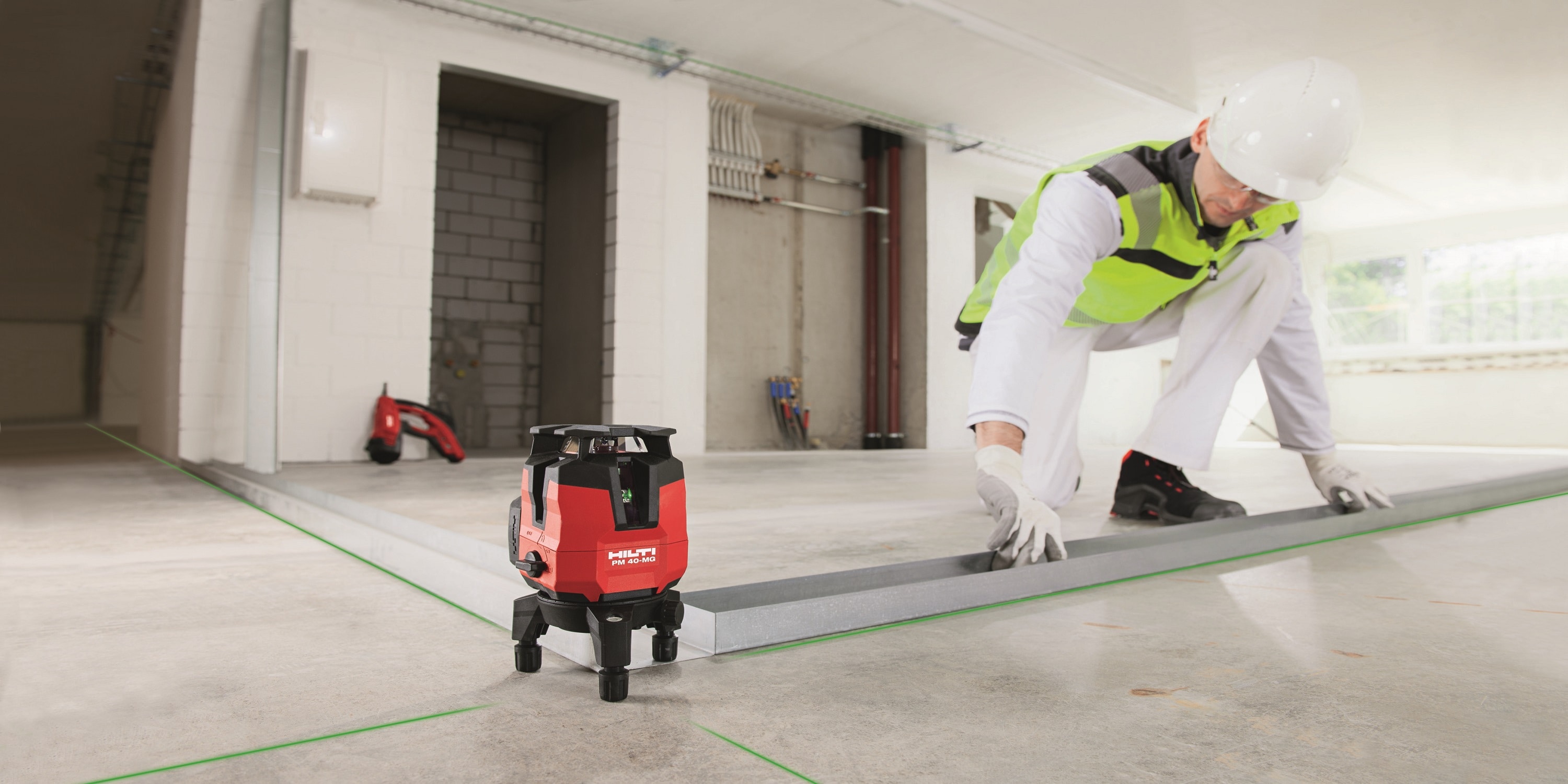

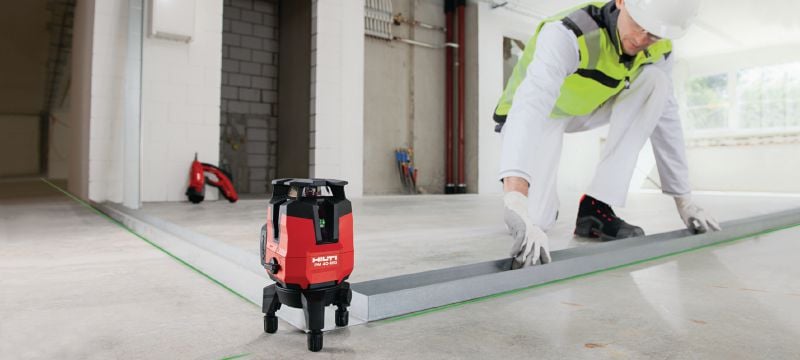

PM 40-MG drywall tracks aligning, New version 2020

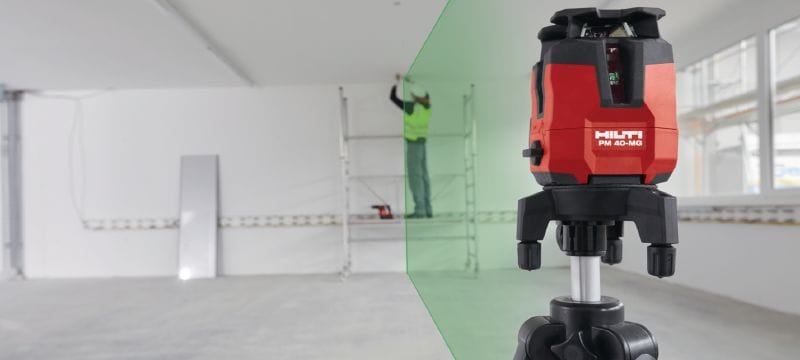

PM 40-MG vertical alignment landscape

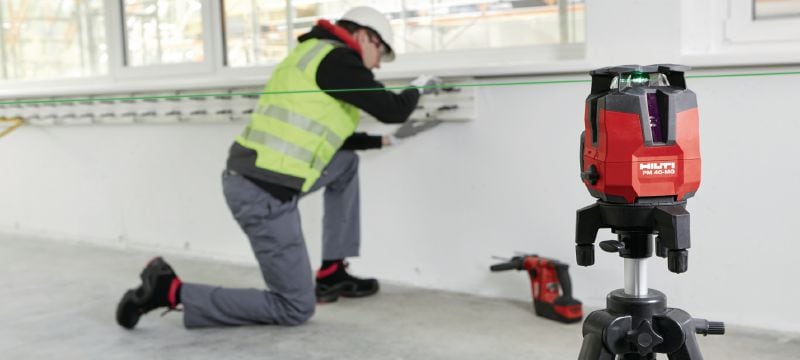

PM 40-MG transfering height

Multi-line laser with 3 green lines for plumbing, levelling, aligning and squaring

  • Accuracy: ±2 mm at 10 m
  • Max. operating distance (diameter): 40 m (lines), 100 m (lines, with receiver)
  • Self leveling range at room temperature: -3.0/ +3.0° °

Customers also searched for laser level, Multiline laser, Line laser, green laser or green laser level.

Customize your kit

Tool Body
Tool body with case
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 18,480

Technical Data

Accuracy
±2 mm at 10 m
Max. operating distance (diameter)
40 m (lines), 100 m (lines, with receiver) 1
Self leveling range at room temperature
-3.0/ +3.0° °
Self leveling time
3 s
Horizontal fan angle
360 °
Vertical fan angle
240 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

pdf Operating Instruction PM 40-MG (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 10.3 MB ]

Features & Applications

Features

  • The most versatile multi-line laser for precise and fast 360° aligning, levelling and squaring
  • Rechargeable B12 Li-ion battery allows up to 1.5 days of continuous layout work (battery and charger sold separately)
  • Metal Blade Axicon technology – protective housing for precision components to keep your multi-line lasers accurate for longer
  • Out-of-level and low-battery alerts – help to prevent mistakes and unexpected downtime
  • Laser class 2 – no special precautionary measures needed

Applications

  • Aligning suspended ceilings
  • Setting out plasterboard studwork on floors, walls, ceiling
  • Transferring reference heights
  • Vertical alignment of pipes and cables
  • Levelling electric sockets, cable trays, radiators and pipe installations
