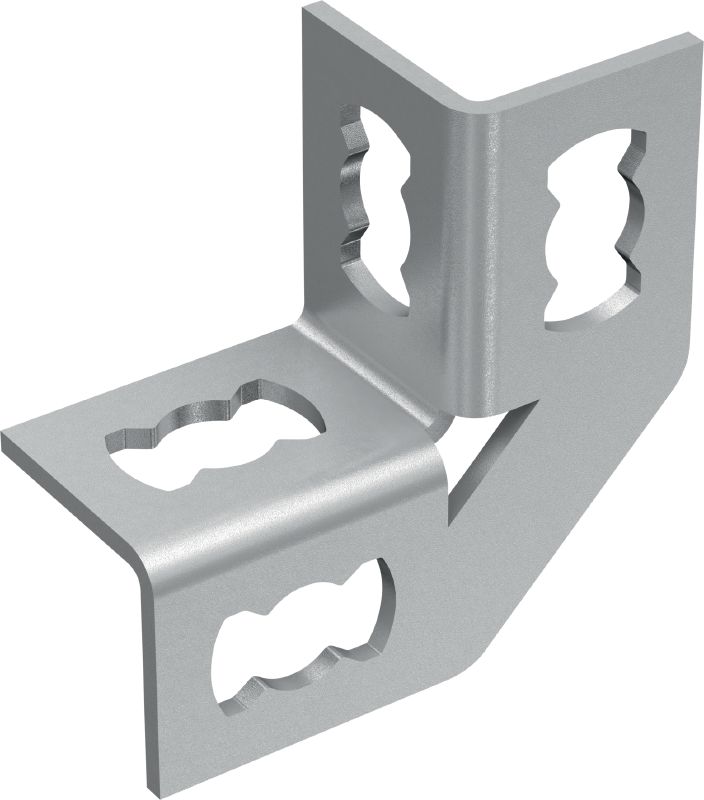

Image 1 of 2: MQW-4-90 Angle Connector Galvanized 90-degree angle for connecting multiple MQ strut channels

Move cursor over image to zoom.

Click on image to zoom.

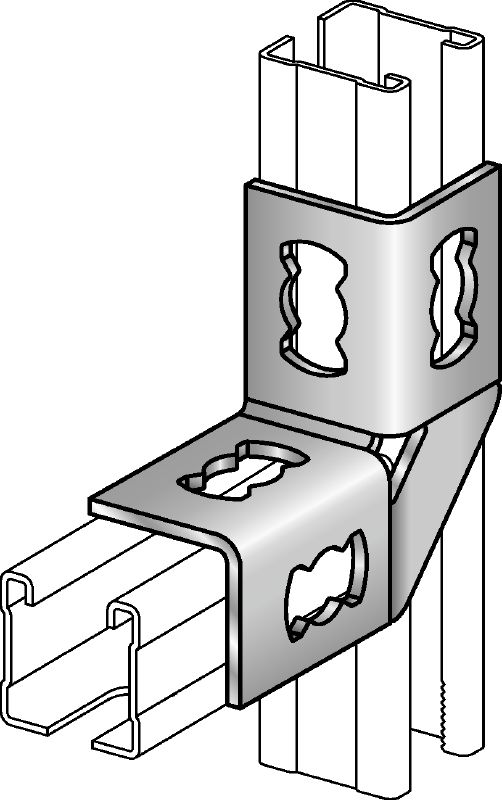

Image 2 of 2: MQW-4-90 Angle Connector Galvanized 90-degree angle for connecting multiple MQ strut channels

Move cursor over image to zoom.

Click on image to zoom.

Move cursor over image to zoom.

Click on image to zoom.

Move cursor over image to zoom.

Click on image to zoom.

1/5

MQW-4-90 Angle Connector

Name: MQW-4-90 Angle Connector
Brand: Hilti
SKU: r11307177

New product

Item #r11307177

Galvanized 90-degree angle for connecting multiple MQ strut channels

Material composition: S235JR - DIN EN 10025
Surface finish: Indoor Coated - Electro galvanized
Number of holes: 4

More technical data

Features

Compatible with push button channel connectors – for much faster, adaptable assembly
Adjustable – easily fit and repositioned along strut channels

Applications

Assembling frames or connections with 45/135-degree angles
Compatible with multiple MQ strut channels
Recommended for use in dry, interior environments

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

4-hole Angle MQW-4
