HHK 41 T-head bolt
T-head bolt HHK 41 M8x40 #312361

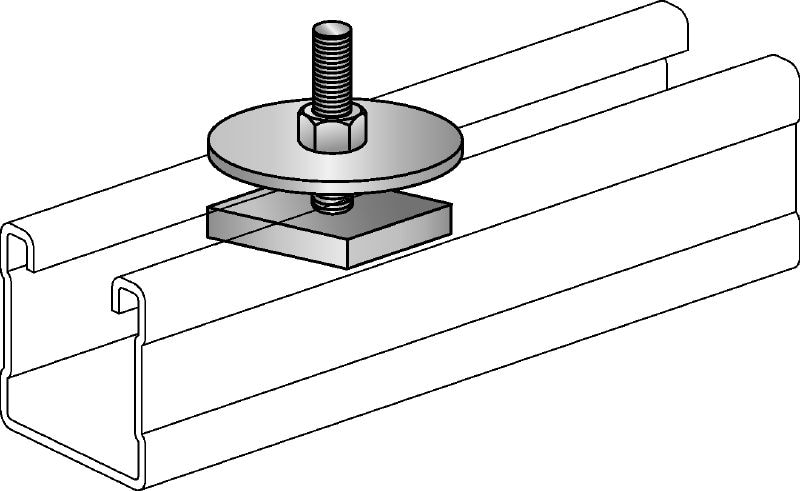

Standard galvanized T-head bolt for connecting pipe clamps to MQ strut channels
- Product Class: Standard
- Thread connection - M: M8
- Material composition: DD11 - DIN EN 10111
standard
Choose options
Thread connection - M
- M8
Length - L
- 40 mm
Pack size
- 50 pc
Quantity
Packs
Total Pieces
50
Discounted (before tax)
TWD 3,050
TWD 61 / 1
Technical Data
Product Class
Standard
Thread connection - M
M8
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
73 g
Features & Applications
Features
- Pre-assembled – simplifies fastening to channels
- Rotation by 90 degrees fixes the T-bolt in place
- Can be placed anywhere along the open channel side
- Rotation by 90 degrees fixes the T-bolt in place
Applications
- Fastening of pipe clamps to channels
