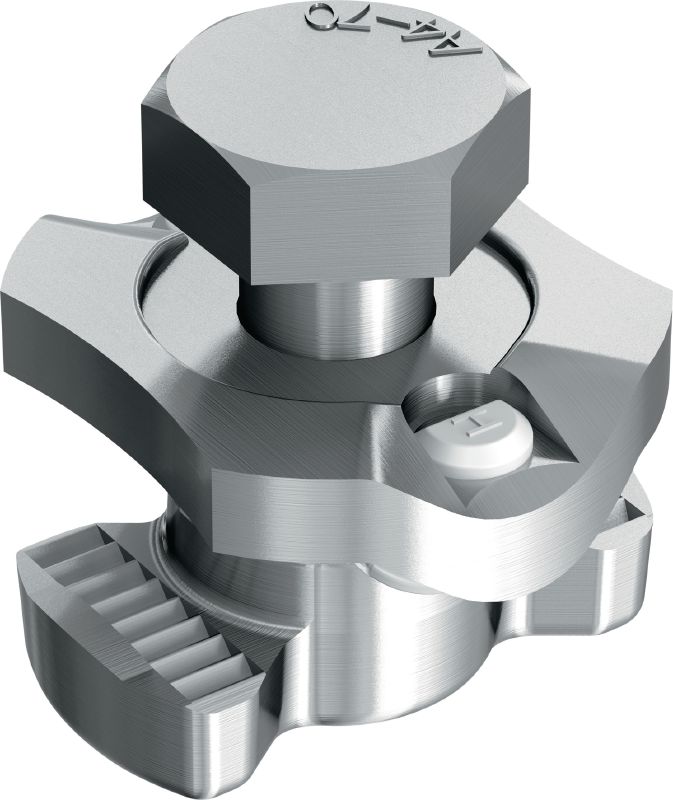

MQN-R Channel connector
Stainless steel (A4) channel connector for joining any elements with a butterfly opening
- Tightening torque: 40 Nm
- Material composition: Screw: A4-70 - DIN ISO 3506-1, Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L
- Surface finish: Outdoor Plus - Stainless Steel
Choose options
Thread connection - M
- M10
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted (before tax)
TWD 8,325
TWD 333
/
1
Technical Data
Tightening torque
40 Nm
Material composition
Screw: A4-70 - DIN ISO 3506-1, Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Wrench size
17 mm
Documents
pdf Corrosion handbook, English [ 9.4 MB ]
Features & Applications
Features
- Designed to be simple, compact and time-saving
- Universal – one connection element for all MQ strut channels
- Universal – one push button for all connectors and MQ installation channels
- Holds securely once it has been pressed, turned and tightened correctly
- Fewer parts and high flexibility
Applications
- Connecting stainless steel MQ brackets, angles and bases to MQ profiles
- Connection element for U-frame/crossbeam structures
- Connecting strut channels and structural elements
For approval or certificate information, please see individual items.
