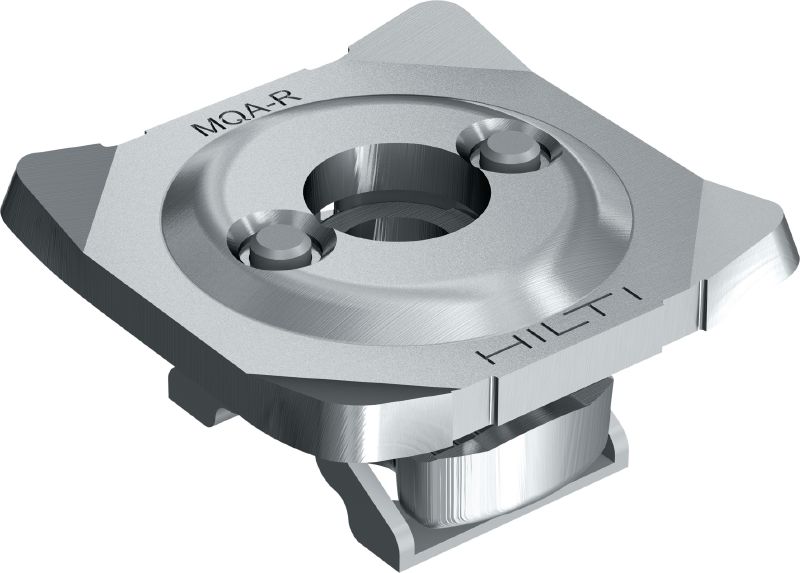

MQA-R Pipe clamp saddle
Pipe ring saddle MQA-M8-R #304021
Stainless steel pipe clamp saddle for connecting threaded components to MQ strut channels
- Tightening torque: 9 Nm
- Thread connection - M: M8
- Material composition: Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L, Plastic: PB
Choose options
Thread connection - M
- M8
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted (before tax)
TWD 6,200
TWD 248 / 1
Technical Data
Tightening torque
9 Nm
Thread connection - M
M8
Material composition
Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L, Plastic: PB
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Weight
85 g
Documents
Features & Applications
Features

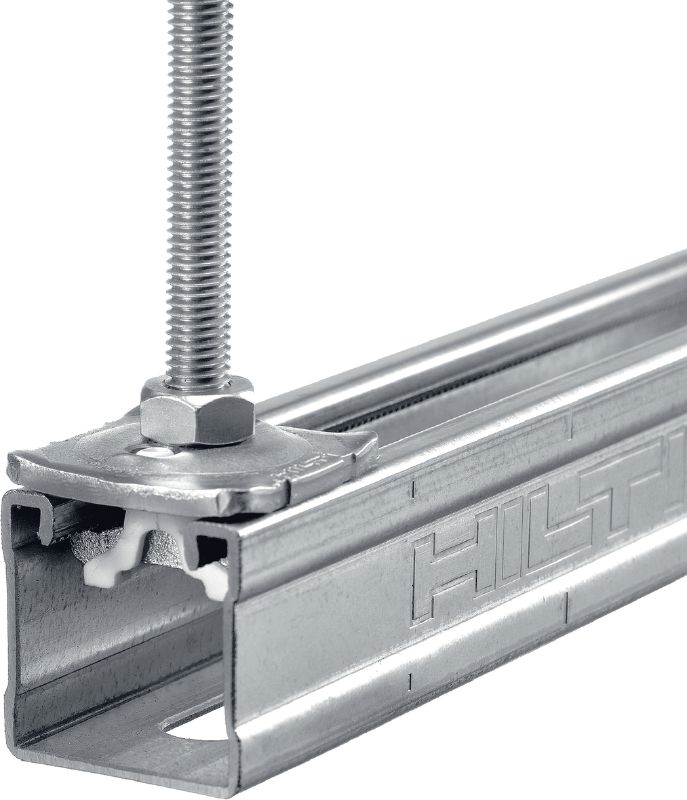

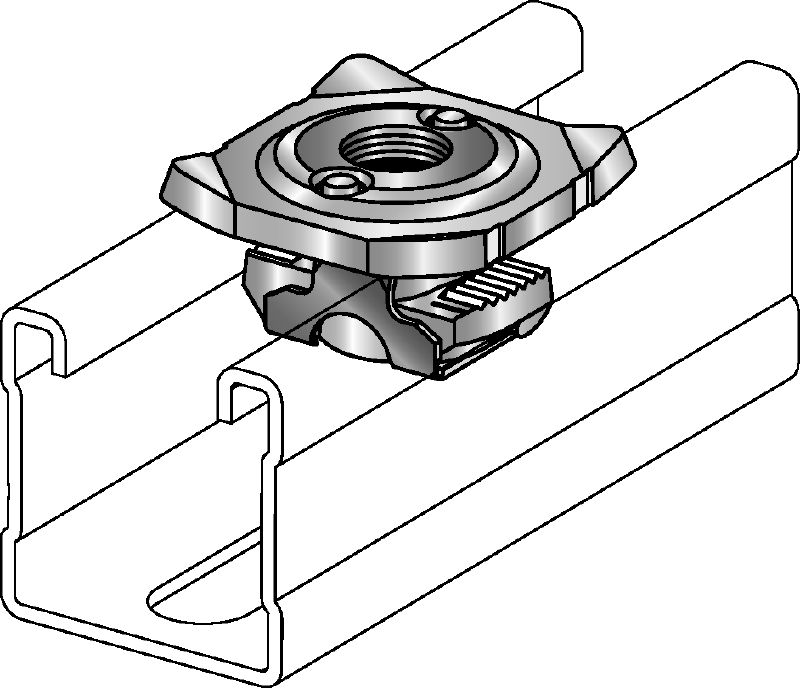

- Quick connection of threaded components to the open side of MQ strut channels
- Easy installation and positioning within MQ strut channel openings
- Single, compact part – for higher productivity and flexibility
- Various thread sizes available
Applications
- Fastening pipes and air ducts
- Fastening cable trays and cable baskets
- Recommended for use in corrosive environments
