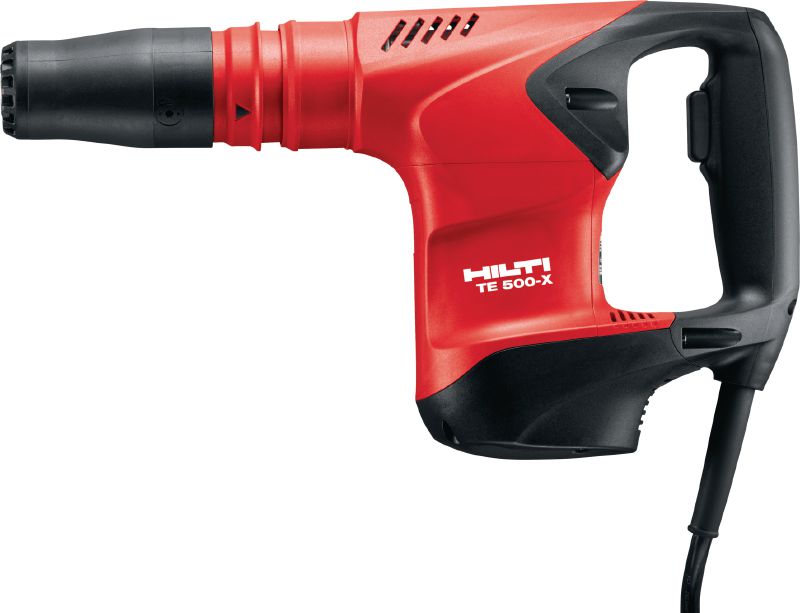

TE 500-X HEX-17 Chipping hammer
Versatile Hex 17 demolition hammer for light-duty chiseling in concrete and masonry
- Working direction: Wall
- Tool chuck type: HEX 17
- Weight according EPTA-Procedure 01/2003 without battery: 4.8 kg
Technical Data
Working direction
Wall
Tool chuck type
HEX 17
Weight according EPTA-Procedure 01/2003 without battery
4.8 kg
Single impact energy
7.5 J
Full hammering frequency
3228 impacts/minute
Max. chiseling performance
1000 cm³/min
Dimensions (LxWxH)
419 x 105 x 240 mm
Triaxial vibration for chiseling into concrete
15.3 m/s² 1
Dust removal system available
TE DRS-Y
A-weighted emission sound pressure level
90 dB (A) 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Robust breaker with extra protection against heat and dust – prolonging the lifetime and lowering repair costs
- Low weight and compact design for easy handling
- Carefully designed cooling allows the breaker to be gripped in places which were usually too hot – making the tool more comfortable and less tiring to use
- Robust trigger switch with variable speed control
Applications
- Making or enlarging breaches in concrete/masonry walls
- Removing tiles
- Surfacing work on concrete walls
- Corrective chiseling on concrete/masonry walls
- Creating channels in concrete or masonry
For approval or certificate information, please see individual items.
