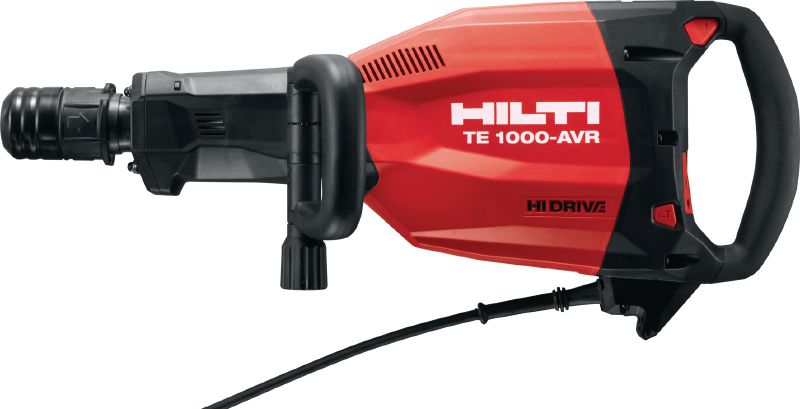

TE 1000-AVR TE-S Demolition hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
TE 1000-AVR with 2nd generation of detachable cord
L067752.tiff
L069678.tiff
L067778.tiff
TE 1000-AVR (2) detachable cord

Versatile breaker for demolishing or chiseling floors and occasional wall applications (with universal power cord)

  • Working direction: Floor, Wall
  • Tool chuck type: TE-S
  • Weight according EPTA-Procedure 01/2003 without battery: 12.5 kg

Customers also searched for concrete breaker, demolition hammer, concrete demolition tool, breaker for concrete or electric concrete hammer.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
From TWD 54,120

Technical Data

Working direction
Floor, Wall
Tool chuck type
TE-S
Weight according EPTA-Procedure 01/2003 without battery
12.5 kg
Single impact energy
26 J
Full hammering frequency
1950 impacts/minute
Max. chiseling performance
7800 cm³/min
Dimensions (LxWxH)
710 x 141 x 305 mm
Triaxial vibration for chiseling into concrete
5.9 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
88 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Reference document
Material safety datasheet
Operating Instruction
pdf MOTW_TE1000-AVR_RoHS, zf [ 212.2 KB ]

Features & Applications

Features

  • High versatility – in-line design for floor breaking and ergonomic side handle for occasional wall breaking
  • Maintenance-free brushless SR motor and triple-chamber lubrication systems for longer service intervals and tool lifetime
  • Exceptionally low tool vibration due to Hilti AVR sub-chassis (Active Vibration Reduction) system
  • Detachable supply cord for fast and easy replacement of damaged/broken supply cords on the jobsite

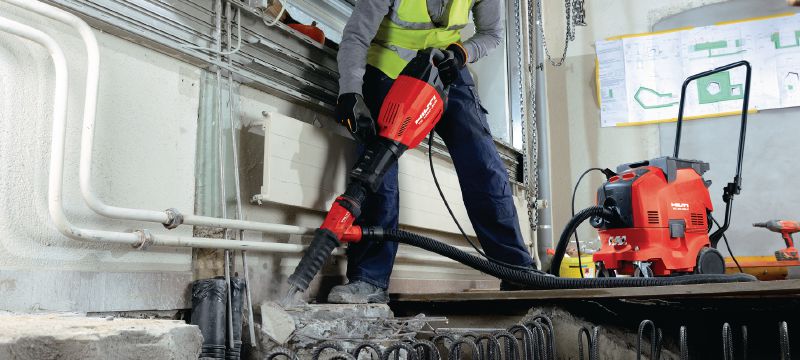

  • Optional TE DRS-B dust removal system, which collects up to 95% of dust

Applications

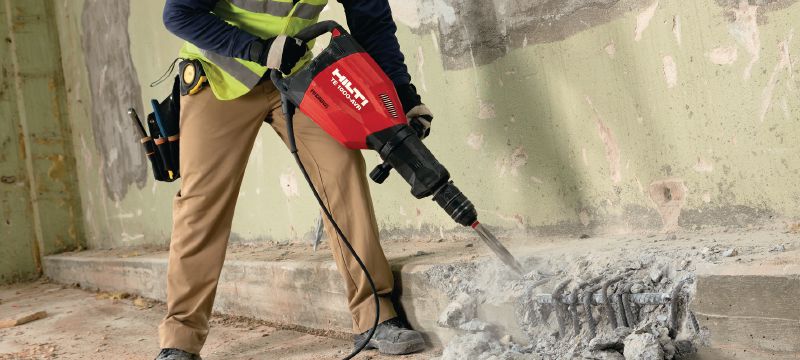

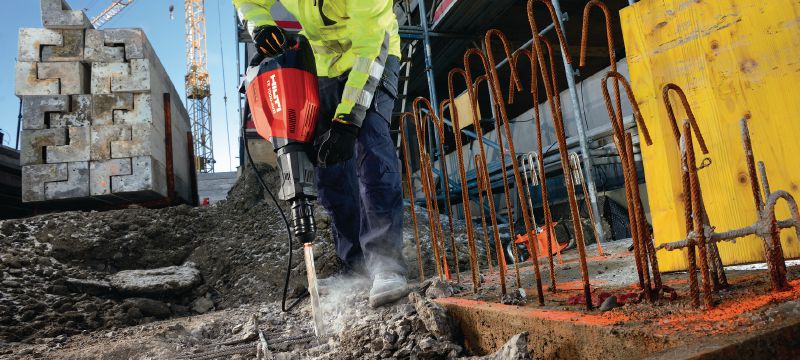

  • Demolishing concrete and masonry at floor level or below waist level
  • Renovating floors of all kinds

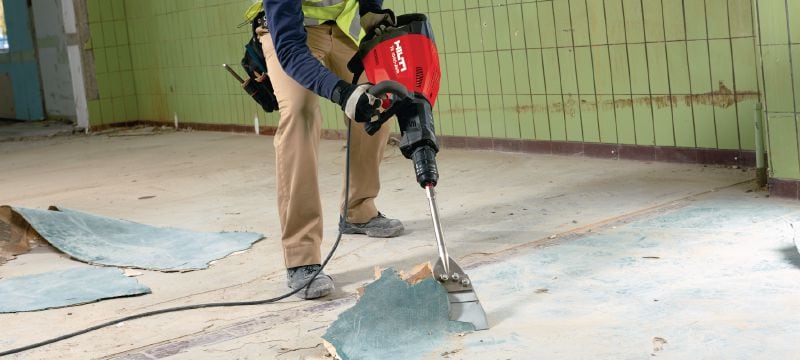

  • Removing tiles, bushing and compacting
  • Corrective chiseling, such as adjustments to door and window openings

For approval or certificate information, please see individual items.
