DST 20-CA 2nd Wall saw

Configurator
Technical Data
Documents
Features & Applications
Related Products
DST 20-CA (G02), Wall saw - Trolley
DST 20-CA (G02), Wall saw
Wall saw application, cutting reinforced concrete
Wall saw application, cutting reinforced concrete

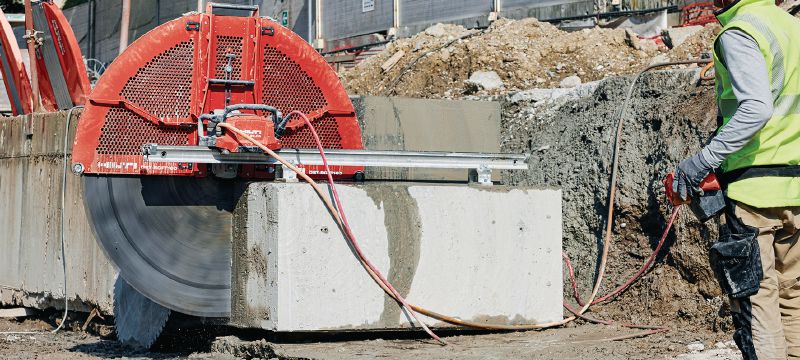

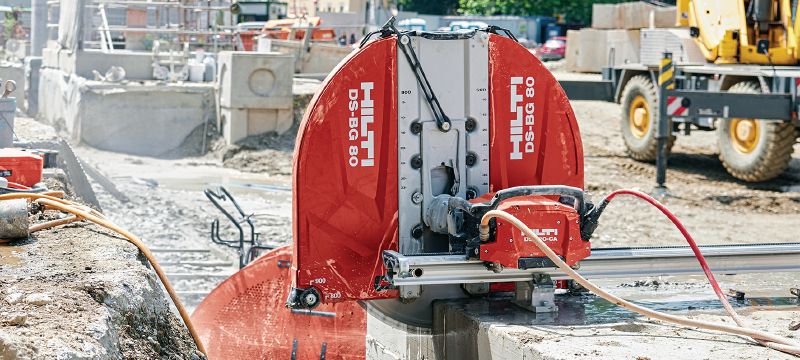

Application picture of the DST 20-CA wall saw. Horizontal cut with standard blade guard DS-BG 80 and 800mm saw blade in concrete.
Application picture of the DST 20-CA wall saw. Horizontal cut with flush cutting blade guard DS-BGFT 160 and 1600mm saw blade in concrete.

Electric wall saw for tough cutting jobs with cut assistance and on-board control electronics (no external e-box)

  • Motor power: 20 kW
  • Blade diameter - range: 600 - 1600 mm
  • Min. generator power: 40 kVA

Customers also searched for electric wall saw, wall saw machine, concrete wall saw, tool for wall sawing or saw for cutting wall.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
From TWD 2,366,320

Technical Data

Motor power
20 kW
Blade diameter - range
600 - 1600 mm
Min. generator power
40 kVA
Power source
Electric
Max. cutting depth
730 mm
Drive weight
32 kg
A-weighted emission sound pressure level
98 dB (A) 1
Drive dimensions (WxLxH)
1100 x 690 x 1180 mm
Remote control
Wireless
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Brochure
Material safety datasheet
Instruction for use
Operating Instruction
pdf Electric Diamond Wall and Wire Saws Leaflet [ 9.7 MB ]

Features & Applications

Features

  • Saves you time for other tasks - Hilti Cut Assist equips tools for fully automated cutting. Starts when surface is detected, then continuously optimizes speed, gear and water flow
  • Faster cutting time – the Pull/Push mode functionality in Cut Assist reduces cutting times compared to the normal pulling mode
  • Easier assembly and disassembly – the integrated flush cutting flange makes it easier to use
  • No external e-box necessary – control electronics integrated on-board make the saw more compact, easier to handle and quicker to set up
  • Cutting depth is displayed in real time on the remote control

Applications

  • Cutting and extending openings in concrete walls and floors
  • Precise demolition of walls and floors with low vibration
  • Cutting through heavily reinforced concrete, synthetic and natural stone, brick and block and other mineral-based materials
  • Cutting in tight spaces and where access is difficult
  • Facade and balcony renovation

For approval or certificate information, please see individual items.
