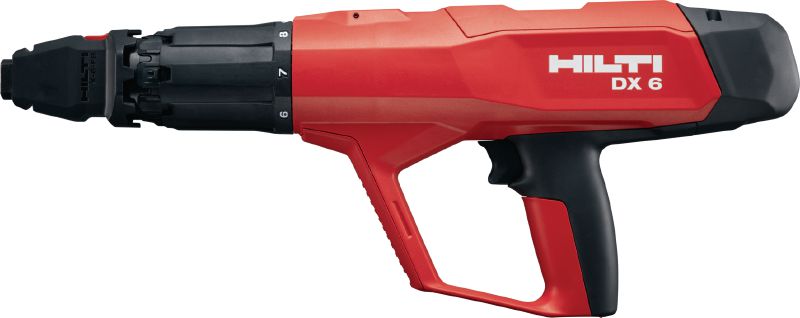

DX 6-F8 Powder-actuated nailer

Fully automatic, highly versatile powder-actuated nailer for single fasteners

  • Dimensions (LxWxH): 475 x 69 x 190 mm
  • Weight: 3.37 kg
  • Fastener Intake: Single

Technical Data

Dimensions (LxWxH)
475 x 69 x 190 mm
Weight
3.37 kg
Fastener Intake
Single
Fastener length range
13 - 72 mm
Automatic piston return
Yes
Bluetooth
No
Hilti Connect
No
Power (max.)
335 J
Power regulation
Yes
Piston type
X-6-5-P8

Documents

Features & Applications

Features

  • Higher productivity – automatic piston return and cartridge advancement equip you to work up to 5 times faster than alternative fastening methods
  • One-step energy level setting – expanded on-tool power adjustment means you can use a single cartridge color for many fastenings
  • Easy to operate – precise control helps to deliver consistent, more accurate fastening
  • On-board display – shows when your nailer needs cleaning or maintenance
  • Easier to maintain – bayonet mount to simplify on-site cleaning and servicing

Applications

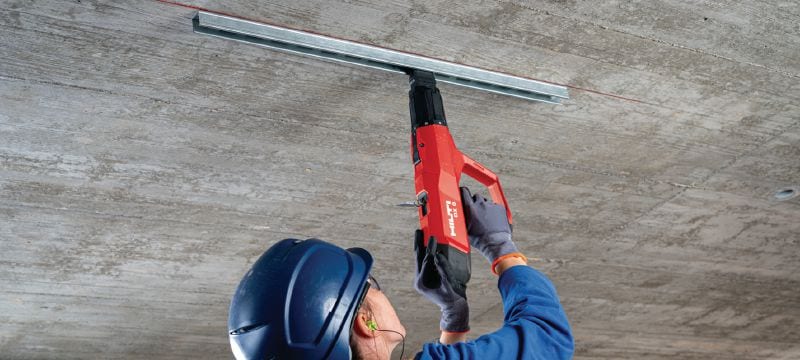

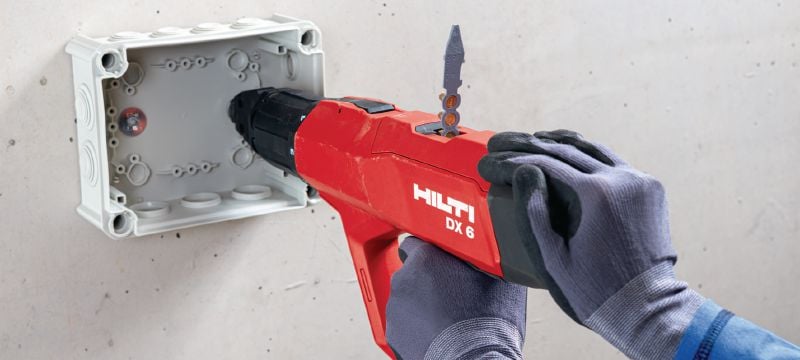

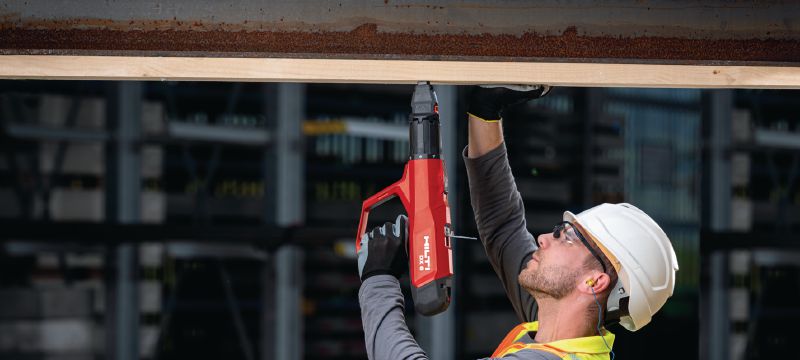

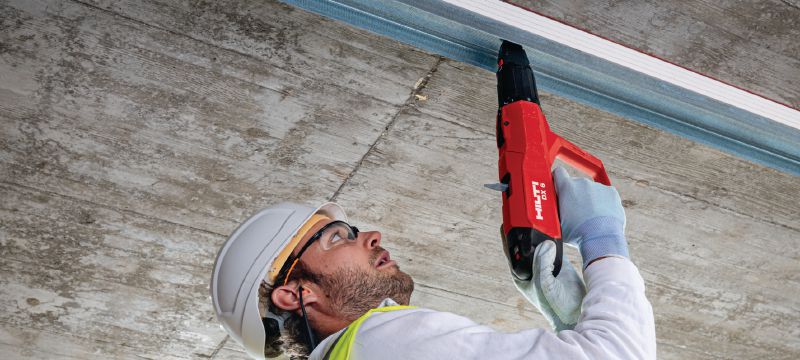

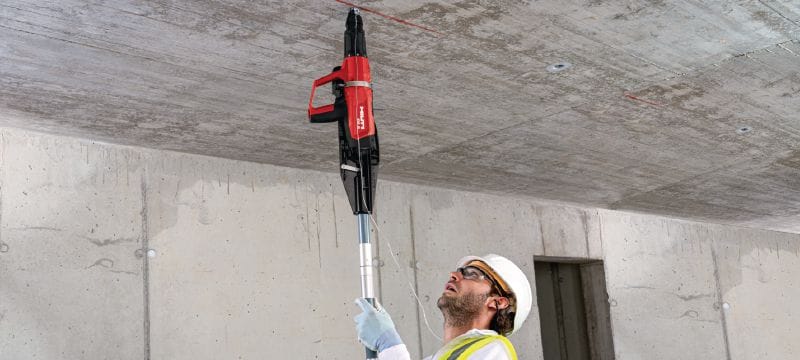

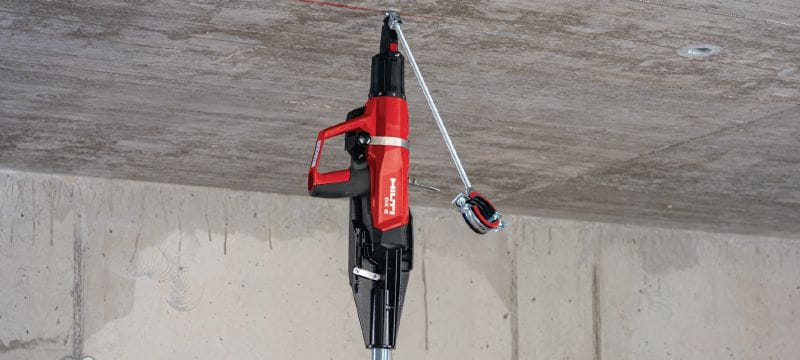

  • Fastening wood and metal sheet to concrete, sand-lime block masonry or steel
  • Fastening 2x4s to concrete

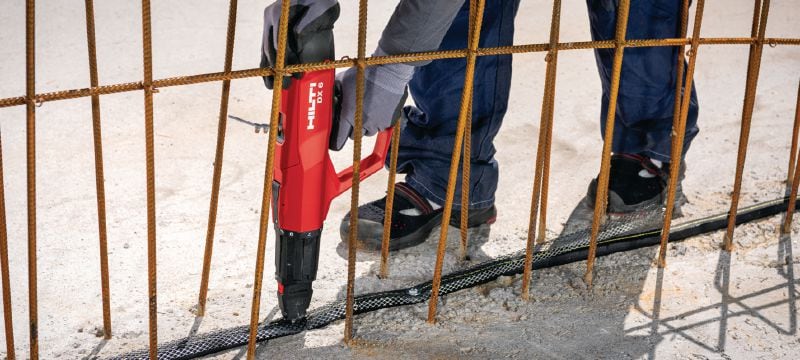

  • Attaching drainage foils and membranes to concrete or CMU block
  • Fastening perimeter wall track, deflection or slip clips to concrete and steel
  • Installing Hilti formstop elements on concrete

For approval or certificate information, please see individual items.
