DX 76 Powder-actuated tool

Powder-actuated tool DX 76 HVB #2090391

Configurator
Technical Data
Documents
Features & Applications
Related Products
L025340.tif
L046655.tiff

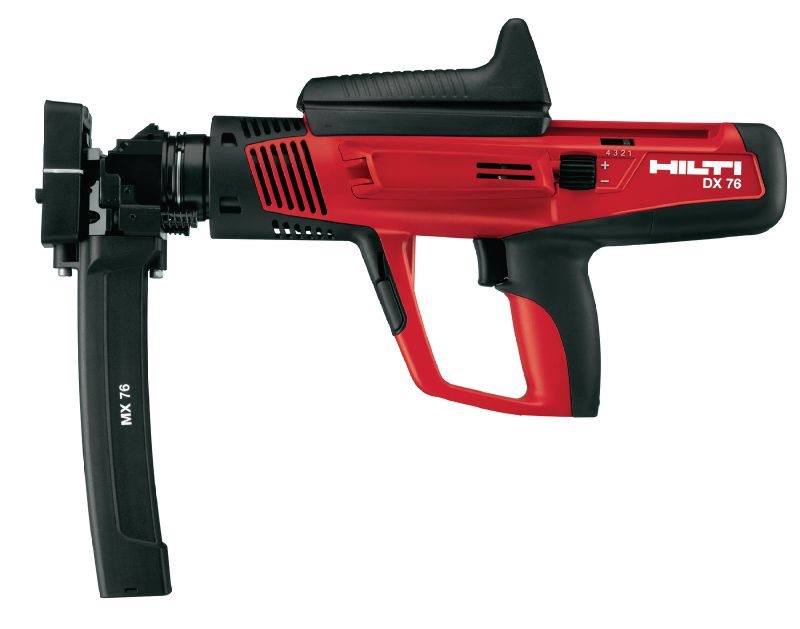

Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks

  • Dimensions (LxWxH): 450 x 101 x 352 mm
  • Weight: 4.35 kg
  • Fastener Intake: Collated

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 88,880
TWD 88,880 / 1

Technical Data

Dimensions (LxWxH)
450 x 101 x 352 mm
Weight
4.35 kg
Fastener Intake
Collated
Fastener length range
19 - 21 mm
Cartridge type
6.8/18 M10
Automatic piston return
No
Bluetooth
No
Hilti Connect
No
Power (max.)
609 J
Power regulation
Yes
Piston type
X-76-P-ENP

Documents

Brochure
Technical information
Material safety datasheet
pdf DX 76 Quick Start Guide [ 10.6 MB ]

Features & Applications

Features

  • Outstanding ergonomic design – padded, non-slip cycling grip and excellent balance means less fatigue during use
  • Built-in safety mechanisms – for safer and more reliable operation
  • Easy to clean and maintain on jobsites
  • Ruggedly built to withstand extreme use
  • Adjustable power regulator – precise control for more reliable fastenings

Applications

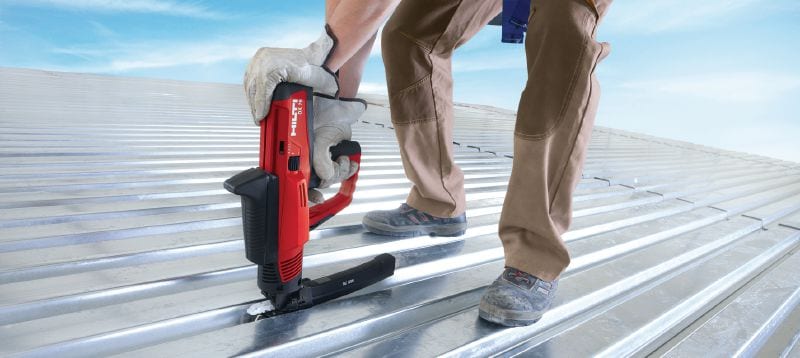

  • Fastening composite metal decks to steel structures with a minimum thickness of 6 mm (1/4") for composite decking

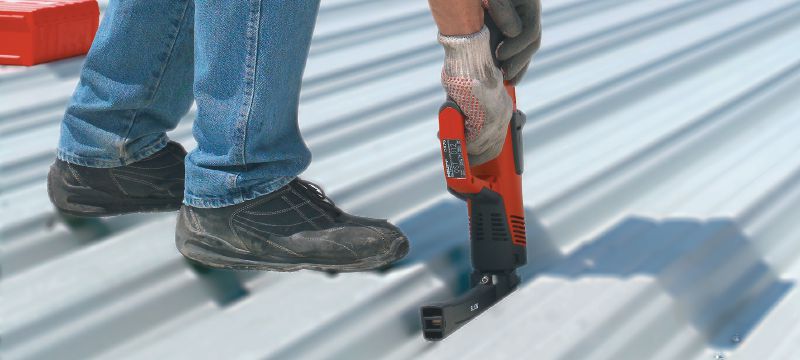

  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing

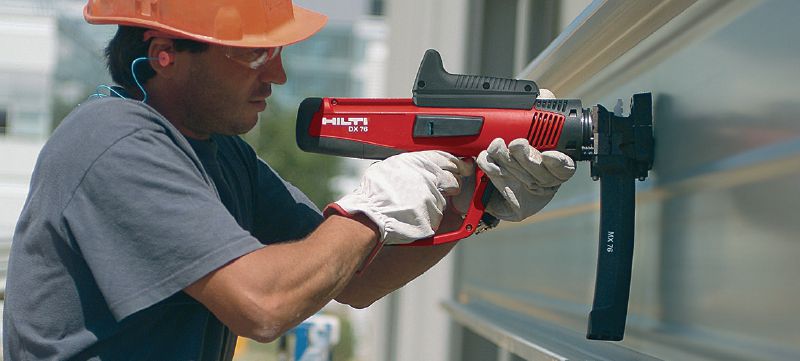

  • Fastening liner trays to steel structures with a minimum thickness of 6 mm (1/4") for siding
  • Fastening grating elements to steel structures using grating accessories
  • Fastening shear connectors on steel structures with HVB accessories
