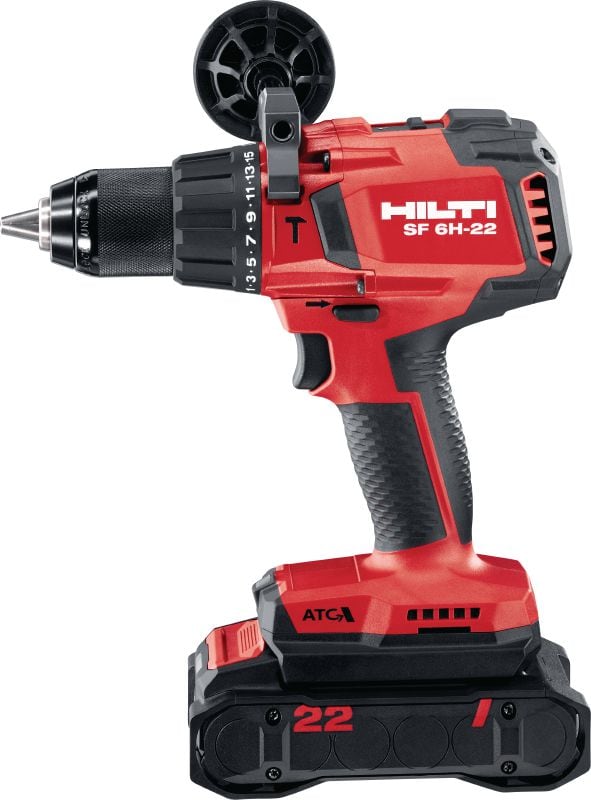

SF 6H-22 Cordless hammer drill driver

Cordl. ham. dr. driver SF 6H-22 case #2254885

Configurator

Technical Data

Documents

Features & Applications

Customize your kit

Tool Body

Tool body with case

How many kits do you want to order?

You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)

TWD 12,780

Technical Data

Maximum torque (Soft / Hard Joint)

65 Nm (soft joint), 85 Nm (hard joint)

No load RPM

gear 1: 490 rpm; gear 2: 2000 rpm

Chuck clamping range

2 - 13 mm

Number of gears

Torque increments

Dimensions (LxWxH)

208 x 68 x 215 mm

Tool body weight

1.677 kg

A-weighted emission sound pressure level

98 dB (A) ¹

Rated voltage

21.6 V

Triaxial vibration value for drilling into metal (ah,D)

1.1 m/s² ²

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SF 6(H)-22 (03), Arabic, Bulgarian, cn, Greek, English, Japanese, Kazakh, Korean, Romanian, Russian, Turkish, Ukrainian, Chinese, Serbian [ 4.1 MB ]

Download

Features & Applications

Features

High-speed, high-torque cordless hammer drill driver built to help you save time with every hole you drill or screw you drive, including in masonry
Uncompromised cordless performance – drill and drive more per charge at consistently high speed thanks to Nuron batteries and the brushless motor
Built to last – full metal chuck, brushless motor, rubber bumpers and optimized cooling to better withstand intense use under tough jobsite conditions
Advanced safety features – Active Torque Control (ATC) helps to prevent the tool body from uncontrolled spinning if the drill bit sticks, and an LED work light in the base provides a clear view of your work area
On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, energy-saving drill bits and a range of services to keep you more productive, today and tomorrow

Applications

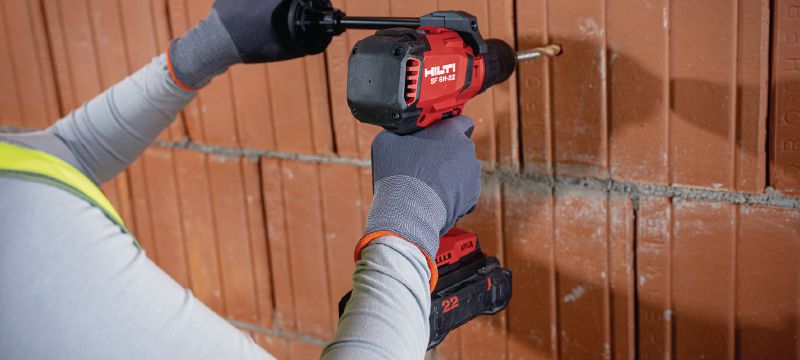

Hammer drilling in brick, masonry and aerated concrete (max. diameter 14 mm)
Cutting recesses and through-holes with hole saws (max. diameter 127mm)

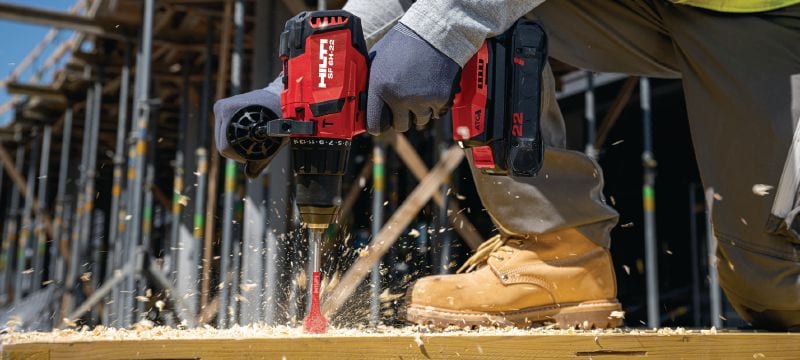

Drilling with auger and spade bits in wood (max. diameter 32 mm)
Fast driving of self-drilling screws in metal (max. diameter 6.3 mm)

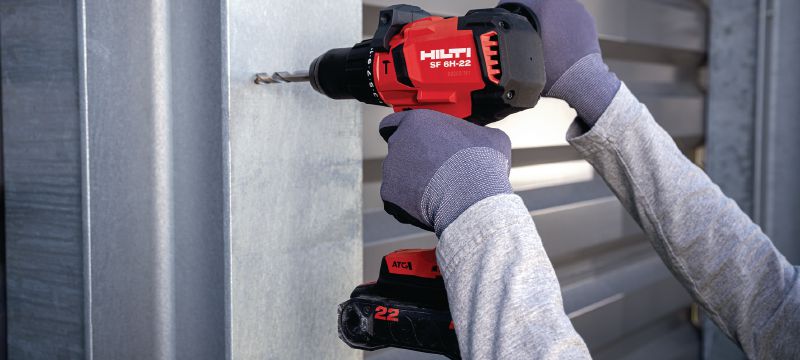

Fast drilling with high torque in metal (max. diameter 13 mm)
