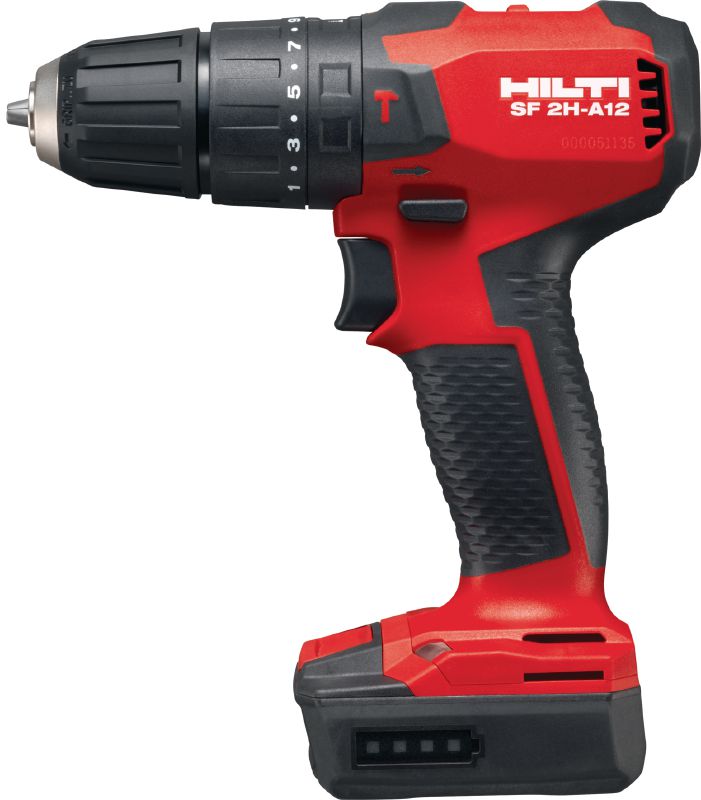

SF 2H-A12 Cordless hammer drill driver

Cordl. ham. dr. driver SF 2H-A12 box #2200035

Configurator
Technical Data
Documents
Features & Applications
Related Products
SF 2H-A12, Cordless drill driver
SF 2H-A12 hammer drilling, r9940033
SF 2 metal drilling, r9940033
SF 2H wood drilling, r9940033

Subcompact-class 12V brushless hammer drill driver for when you need access, low weight and high control

  • Maximum torque (Soft / Hard Joint): 21 Nm (soft joint), 34 Nm (hard joint)
  • No load RPM: gear 1: 400 rpm; gear 2: 1600 rpm
  • Chuck clamping range: 1 - 10 mm

Customers also searched for Drill, Hammer drill, Drill set, Small cordless drill or 12 v drill.

Customize your kit

Tool Body
Tool body with cardboard box
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 4,365

Technical Data

Maximum torque (Soft / Hard Joint)
21 Nm (soft joint), 34 Nm (hard joint)
No load RPM
gear 1: 400 rpm; gear 2: 1600 rpm
Chuck clamping range
1 - 10 mm
Number of gears
2
Torque increments
15
Dimensions (LxWxH)
174 x 68 x 177 mm
Tool body weight
0.877 kg
A-weighted emission sound pressure level
90 dB (A) 1
Rated voltage
10.8 V
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SF 2(H)-A12, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 3.5 MB ]

Features & Applications

Features

  • More compact than ever – the cordless hammer drill driver for working in cramped or hard-to-reach spaces
  • Minimized weight – especially when working overhead or bigger jobs, a lighter drill driver is key to sustained productivity
  • Upgraded ergonomics – fits firmly in your grip, for more comfortable handling and precise control
  • Outsized performance – powerful 1600 rpm drilling speed and 34 Nm hard joint torque, despite the minimized tool size and weight
  • Brushless motor – virtually maintenance-free to minimize tool downtime

Applications

  • Hammer drilling up to 6 mm diameter in brick, masonry, sand-lime block and aerated concrete
  • Installing electrical switches, sockets, pipe rings and other equipment
  • Drilling with HSS bits up to 6 mm diameter in metal
  • Drilling with auger and spade bits up to 14 mm diameter in wood
  • Hole sawing up to 35 mm diameter in metal
