Nuron

SID 4-22 Cordless impact driver

Cordl. impact driver SID 4-22 case #2324275

Configurator
Technical Data
Documents
Features & Applications
Related Products

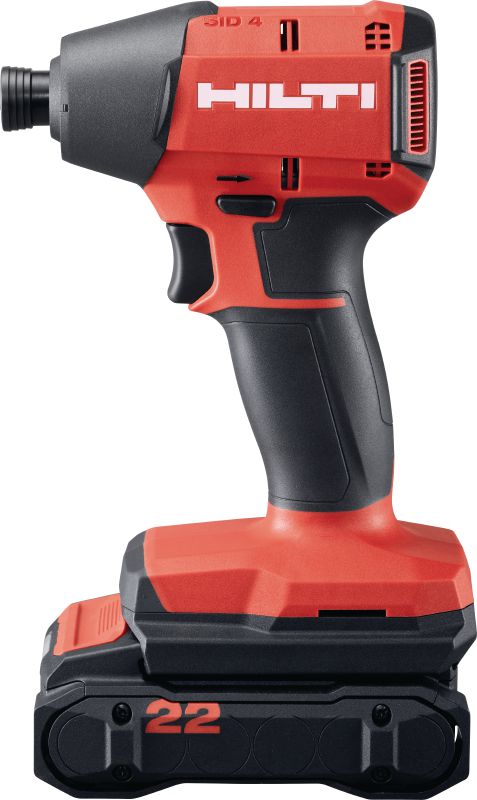

SID 4-22 with battery B22-55
Fastening screws into wood with the SID 4-22 and the B22-55 battery, cropped version

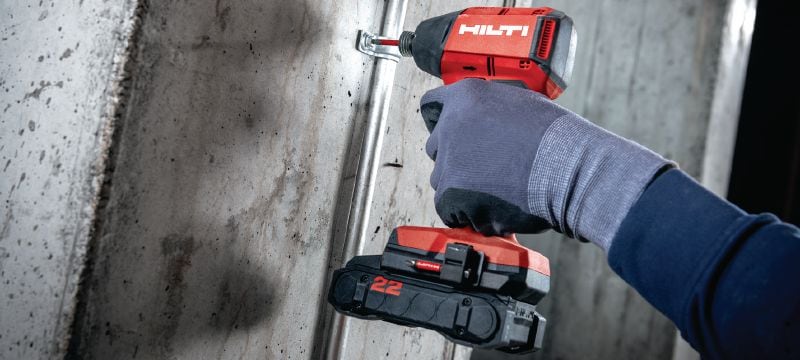

Closing the pipe clamps into concrete with the SID 4-22 and the B22-55 battery, cropped version

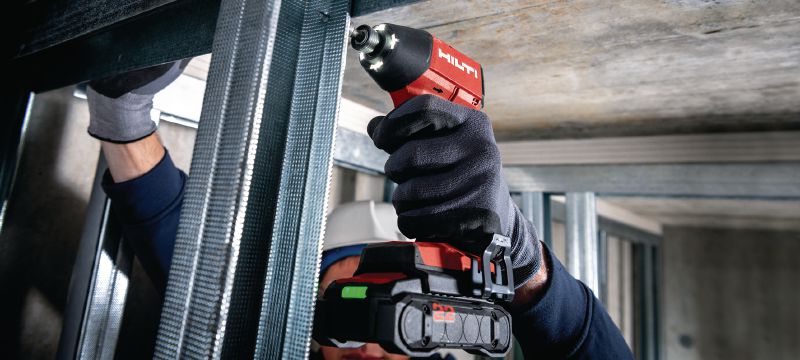

Fastening metal screws in framing application with Hilti HUS anchors with the SID 4-22 and the B22-55 battery and belt hook, cropped version

Compact brushless impact driver optimized for more reliable and efficient non-structural fastening in wood and metal (Nuron battery platform)

  • Feature: LED light around the chuck
  • Chuck type: 1/4" hexagonal click-in
  • No load RPM: gear 1: 3000 rpm

Customers also searched for cordless impact driver, impact driver, battery impact driver, SID 4-22 or Nuron battery impact driver.

Customize your kit

Tool Body
Tool body with case
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 9,540

Technical Data

Feature
LED light around the chuck
Chuck type
1/4" hexagonal click-in
No load RPM
gear 1: 3000 rpm
Maximum torque
186 Nm (1) 1
Full hammering frequency
4400 impacts/minute
Number of gears
1
Dimensions (LxWxH)
134 x 68 x 204 mm
Tool body weight
0.852 kg
A-weighted emission sound pressure level
95 dB (A) 2
Tri. vibr. val for impact tightening of fasteners of the max cap of tool (ah)
10.7 m/s²
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SID 4-22 (02), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Features & Applications

Features

  • Economical alternative to the SID 6-22 – SID 4-22 is Hilti’s recommended cordless impact driver if you don’t need to set hundreds of screws per day
  • Extra-compact size – at just 134 mm from front to back, this is the ideal impact driver when you need to work in tight spaces
  • LED lights around the chuck – four built-in lights for a clearer, glare-free view of your work area
  • Ergonomic grip – textured and contoured for more comfortable control, even when working in awkward positions
  • Built to last – 1/4" hex click-in chuck, re-engineered gearing, motor cooling and sealed electronics make this our most durable impact driver to date

Applications

  • Smaller fastening jobs where time-per-fastening is not your biggest concern – such as formwork, prefab and glazing
  • Self-drilling screws – optimized for drilling through metal, then driving threads to completion
  • Wood screws – agile cordless impact driver for attaching wood to wood
  • Masonry screws – three gears so torque can be reduced for masonry screws such as HRD
  • Drilling in wood with spade bits such as WDB-S (max. diameter 25 mm)
