Nuron

SID 4R-22 Right-angle impact driver

Cordl. RA impact driver SID 4R-22 case #2363673

Configurator
Technical Data
Documents
Features & Applications
Related Products

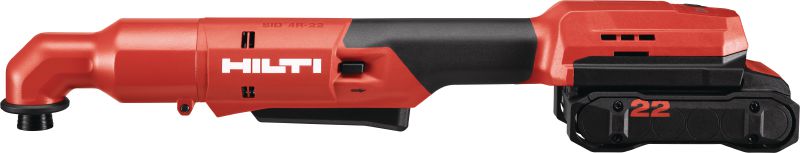

Still life image of the right angle impact driver SID 4R-22 without battery.

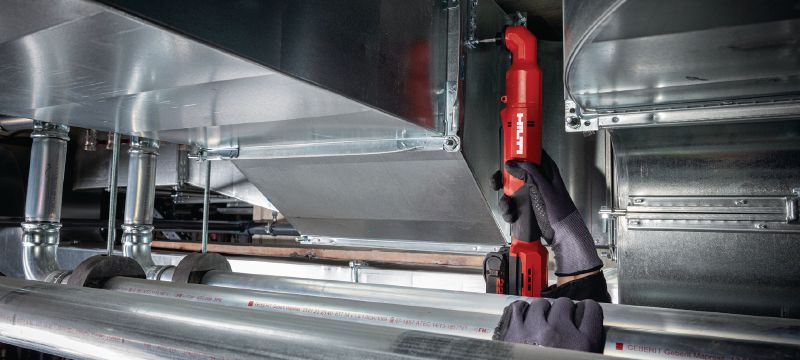

Application image of the right angle impact driver SID 4R-22 with B22-55 battery and with bit. Mechanical ventilation application.

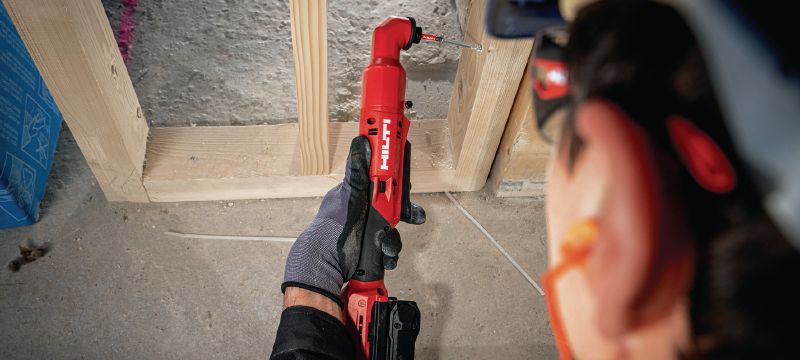

Application image of the right angle impact driver SID 4R-22 with B22-55 battery and with bit. Wood framing application.

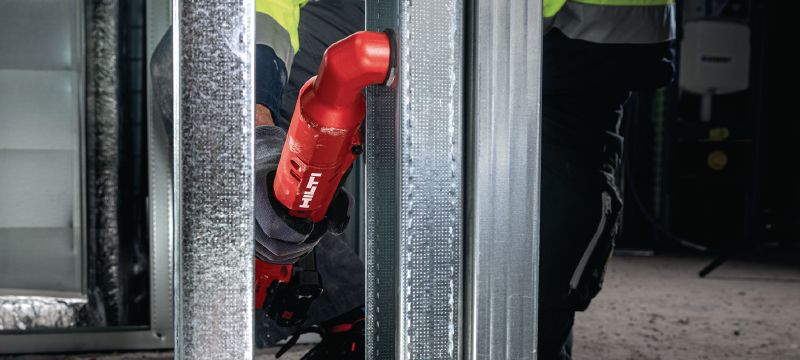

Application image of the right angle impact driver SID 4R-22 with B22-55 battery. Metal framing application.

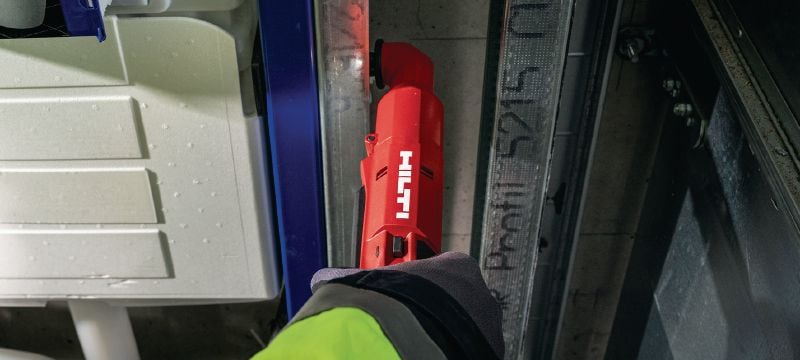

Application image of the right angle impact driver SID 4R-22 with B22-55 battery. Metal framing application.

Compact, cordless right-angled impact driver for reaching tough-to-access applications

  • Feature: LED light
  • Chuck type: 1/4" hexagonal click-in
  • No load RPM: gear 1: 1600 rpm; gear 2: 2250 rpm

Customers also searched for cordless impact driver, cordless impact driver, battery impact driver, Nuron impact driver or Nuron battery impact driver.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 12,510
TWD 12,510 / 1

Technical Data

Feature
LED light
Chuck type
1/4" hexagonal click-in
No load RPM
gear 1: 1600 rpm; gear 2: 2250 rpm
Maximum torque
31 Nm (1); 98 Nm (2) 1
Full hammering frequency
3800 impacts/minute
Number of gears
2
Dimensions (LxWxH)
438 x 69 x 78 mm
Tool body weight
1.2 kg
A-weighted emission sound pressure level
97 dB (A) 2
Tri. vibr. val for impact tightening of fasteners of the max cap of tool (ah)
17.4 m/s²
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SID 4R-22 (01) (ARCNDAENETFIJAKKKOLTLVNORUSVTRUKZH), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3 MB ]

Features & Applications

Features

  • Access to hard-to-reach spaces where other tools won’t fit
  • Reach even further into confined spaces with the longer grip and in-line battery interface
  • Quick change ¼” hex chuck allows for the easy input of bits
  • Built to last thanks to the more efficient brushless motor, more powerful motor cooling and sealed electronics
  • Strong LED light provides more powerful illumination of the work area

Applications

  • Self-drilling screws – optimised for drilling through metal, then driving threads to completion
  • Wood screws – agile cordless impact driver for attaching wood to your project
  • Masonry screws – two gears so torque can be reduced for masonry screws
  • Drilling in wood with spade bits such as WDB-S
