Nuron

TE 4-22 Cordless rotary hammer

TE4-22 with TE-CX M12x2 KIT #3832282

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

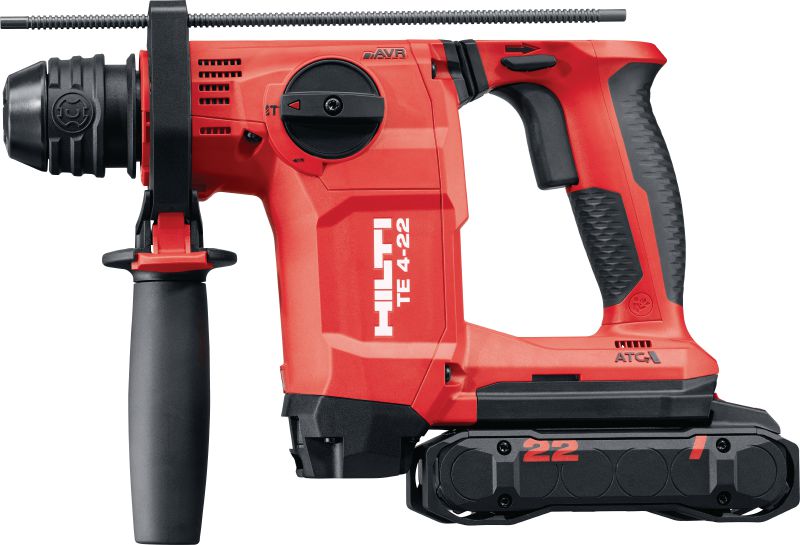

Still life image of TE 4-22 (G03) with B22-85
Still life image of TE 4-22 (G03) with B22-110

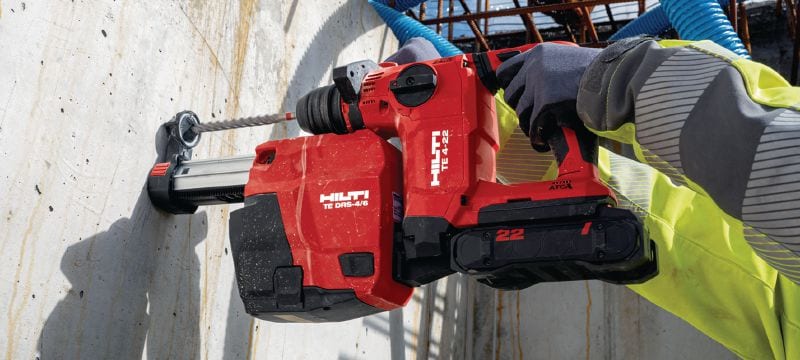

Concrete hammer drilling with SDS plus (TE C) rotary hammer TE 4-22 and TE DRS-4/6 with NURON battery B22-85

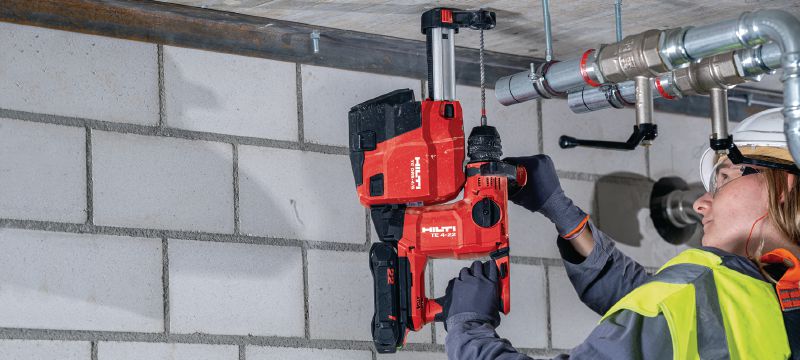

Concrete hammer drilling with SDS plus (TE C) rotary hammer TE 4-22 and TE DRS-4/6 with NURON battery B22-85

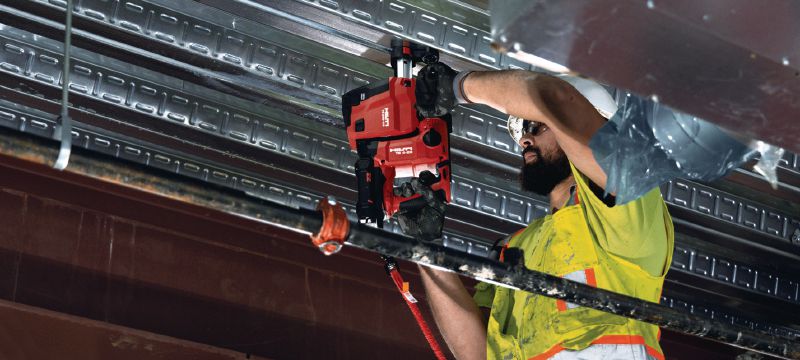

Overhead serial drilling with optimized, safe and high performing rotary hammer TE 4-22 and TE DRS-4/6

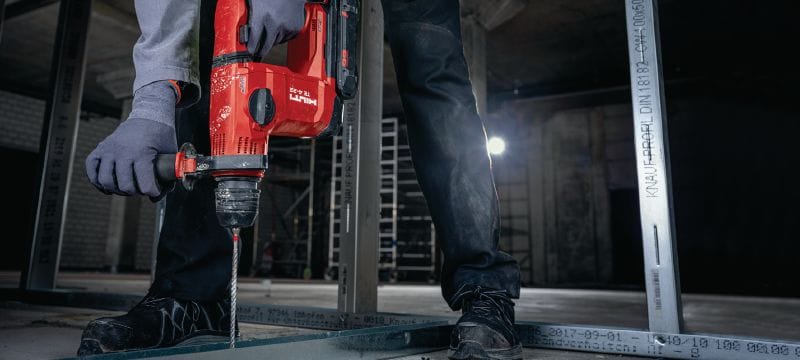

Concrete hammer drilling with SDS plus (TE C) rotary hammer TE 4-22 and TE DRS-4/6 with NURON battery B22-85

Compact SDS Plus cordless rotary hammer with our best performance-to-weight ratio for overhead drilling (Nuron battery platform)

  • Weight according EPTA-Procedure 01/2003 without battery: 2.45 kg
  • Optimum Hammer drilling range: 4 - 14 mm
  • Single impact energy: 2.3 J

Customers also searched for cordless rotary hammer, cordless hammer drill, concrete hammer drill, SDS Plus rotary hammer or Nuron battery platform.

Customize your kit

Tool Body
Tool body with case Includes: 1x Hilti Grease, 1x Tool case TE 4-22 assy, 2x Hammer drill bit TE-CX 12/17
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 21,870

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
2.45 kg
Optimum Hammer drilling range
4 - 14 mm
Single impact energy
2.3 J
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Depth gauge, Hammer drilling, Integrated Dust Removal System (DRS), Reverse mode, Working light LED
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.3 m/s² 1
A-weighted emission sound power level
98 dB (A) 2
A-weighted emission sound pressure level
90 dB (A) 3
Dust removal system available
TE DRS-4/6, TE DRS-C, TE DRS-D
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (ZH) [ 1 MB ]

Features & Applications

Features

  • Compact but highly capable – the best balance of power-to-weight ratio, drilling speed and work per charge of any Hilti SDS Plus rotary hammer drill
  • Faster drilling – finish your installation faster thanks to 20% more power from the new brushless motor and revolutionary Nuron batteries
  • Improved comfort – reduced weight, redesigned grips, LED light and better balance make the TE 4-22 cordless rotary hammer especially easy to handle when drilling overhead
  • Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrollable spinning if the bit sticks
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Applications

  • Drilling and hammer drilling in concrete and masonry
  • Overhead drilling in concrete, such as for hanging pipes and conduits, MEP installations and suspended ceilings
  • Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
  • Setting anchors and drop-in anchors in concrete (with optional TE-C bit holder and setting tool)
  • OSHA 1925.1153 Table 1 compliant, virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
