Nuron

TE 8-22 Cordless rotary hammer

TE 8-22 with TE-CX M16/M18 #5010851

Still life image of the TE 8-22 Cordless Rotary Hammer with battery

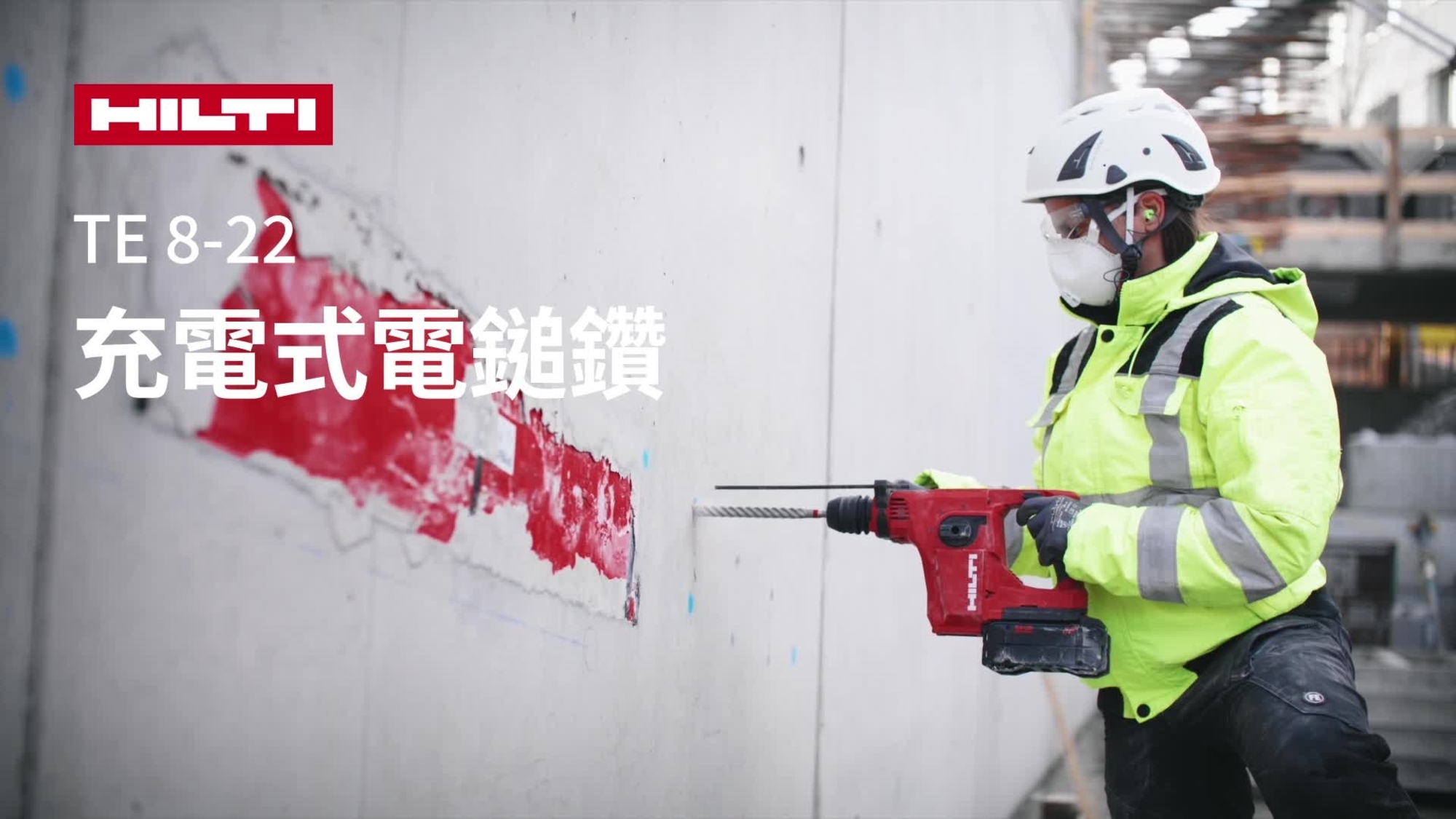

Cropped application picture of the cordless rotary hammer TE 8-22
Cropped application picture of the cordless rotary hammer TE 8-22
Cropped application picture of the cordless rotary hammer TE 8-22

Powerful SDS Plus cordless rotary hammer with faster drilling speed and lower vibration, ideal for reinforced concrete (Nuron battery)

  • Weight according EPTA-Procedure 01/2003 without battery: 2.9 kg
  • Optimum Hammer drilling range: 6 - 18 mm
  • Single impact energy: 3.3 J

Customers also searched for Cordless Rotary Hammer TE 8-22, TE 8-22 or cordless hammer.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 30,600
TWD 30,600
/
1

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
2.9 kg
Optimum Hammer drilling range
6 - 18 mm
Single impact energy
3.3 J
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
1230 rpm
Full hammering frequency
4700 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Depth gauge, Removable chuck, Reverse mode, Torque clutch, Electronic Slip Clutch, Hammer drilling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
6.7 m/s² 1
Triaxial vibration for chiseling into concrete
6.4 m/s² 2
A-weighted emission sound power level
98 dB (A) 3
A-weighted emission sound pressure level
90 dB (A) 4
Dust removal system available
TE DRS-22, TE DRS-C, TE DRS-D
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (ZH) [ 1 MB ]

Features & Applications

Features

  • Higher performance-to-weight ratio – our fastest cordless SDS plus rotary hammer in its weight-class, the TE 8-22 brings higher drilling speeds to help power through concrete and rebar with ease
  • Upgraded 3D Active Vibration Reduction (AVR) – the motor is isolated from the tool body, delivering our lowest vibration in its class for smoother drilling and all-day comfort
  • New dust removal system – combine with the TE DRS-22 for virtually dust-free drilling and a new vacuum port to help empty dust without silica exposure
  • Electronic Slip Clutch for rebar drilling – the TE 8-22 comes with an Electronic Slip Clutch (ESC), helping increase comfort and reduce drill bit jams in reinforced concrete
  • Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit sticks

Applications

  • Drilling and hammer drilling in rebar reinforced concrete, concrete, and masonry
  • Virtually dust-free drilling (TE DRS-22 on-board dust removal system or TE DRS-C dust extractor connector required)
  • Light-duty chiseling – such as tile scraping, channel cleaning or surface correction
  • Occasional drilling in wood and steel (with optional quick-release chuck)
