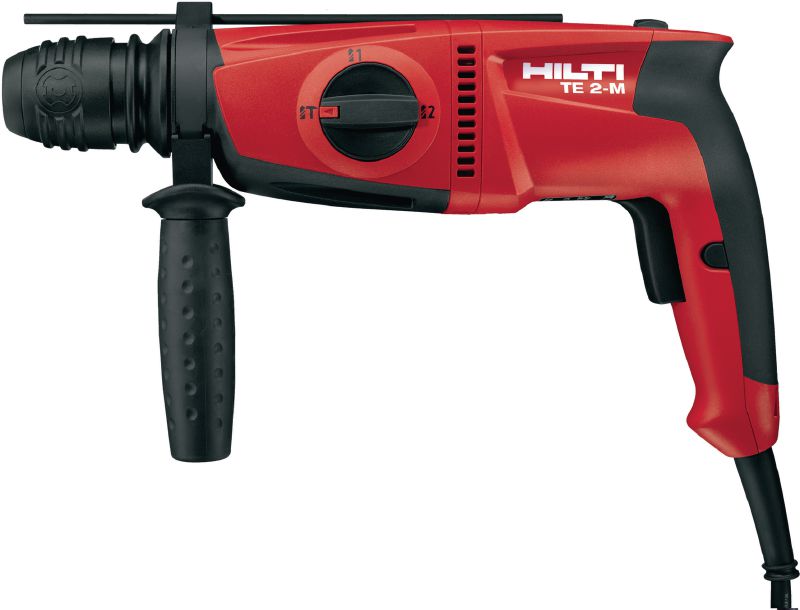

TE 2-M Rotary hammer

TE 2-M Combo (+TE-C3X 3/8, 1/2) product number: 3458669

Compact, multi-purpose triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling

Weight according EPTA-Procedure 01/2003 without battery: 2.9 kg
Optimum Hammer drilling range: 4 - 14 mm
Single impact energy: 1.8 J

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)

TWD 10,912

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

2.9 kg

Optimum Hammer drilling range

4 - 14 mm

Single impact energy

1.8 J

Working mode

Hammer drilling, Drilling

Hammer drilling diameter range

4 - 22 mm

Hammer drilling RPM

1200 rpm

Full hammering frequency

4600 impacts/minute

Functionality

2nd gear for metal drilling, Removable chuck, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

12.1 m/s² ¹

A-weighted emission sound pressure level

91 dB (A) ²

Rated input power

650 W

Dimensions (LxWxH)

360 x 89 x 203 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf TE 2 Rotary hammers-RoHS declaration, zf [ 22.4 KB ]

Download

Features & Applications

Features

Three-mode SDS Plus (TE-C) rotary hammer – for hammer drilling plus 2 gears for rotary-only drilling
Sturdy motor with high load rating for maximum reliability
Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
Electronic switch for precise drilling
360° side handle adjusts easily for preference or use in tight spaces

Applications

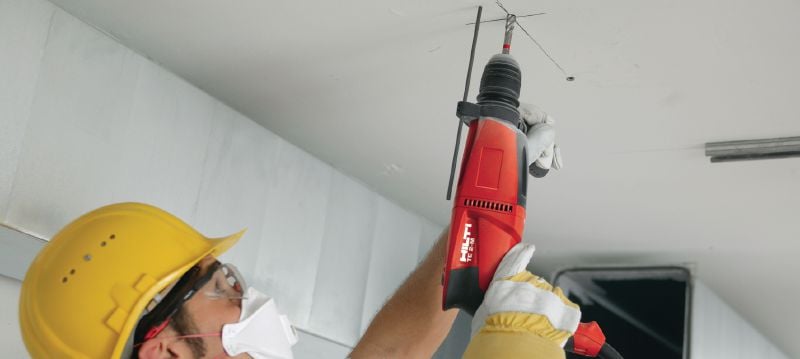

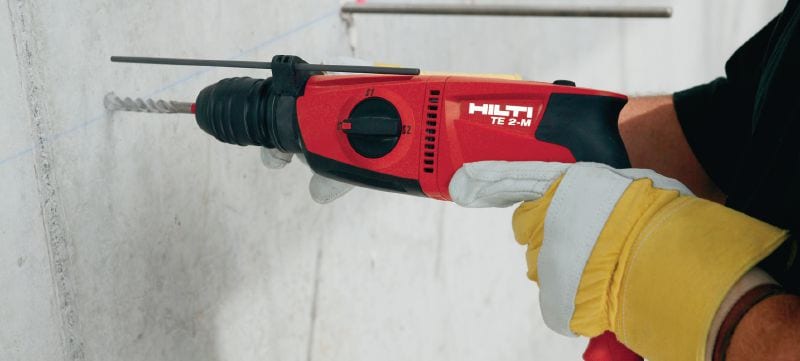

Daily hammer drilling in concrete, masonry and natural stone
2 gears for optimal drilling in steel, wood and plastics using optional Quick-Release Chuck
Driving screws using optional bit holder
Reverse feature assists in the removal of stuck drill bits

Related Products

_New

TE-CX SDS Plus drill bits (metric)

Ultimate SDS Plus (TE-C) hammer drill bits sets with different bit diameters and lengths (metric)

Quick-release chuck TE 2M/7C/7A/6A Li

Chucks for TE-C (SDS Plus) rotary hammers

TE DRS-D Dust removal system

Dust removal system for concrete and masonry drilling with all rotary hammers
