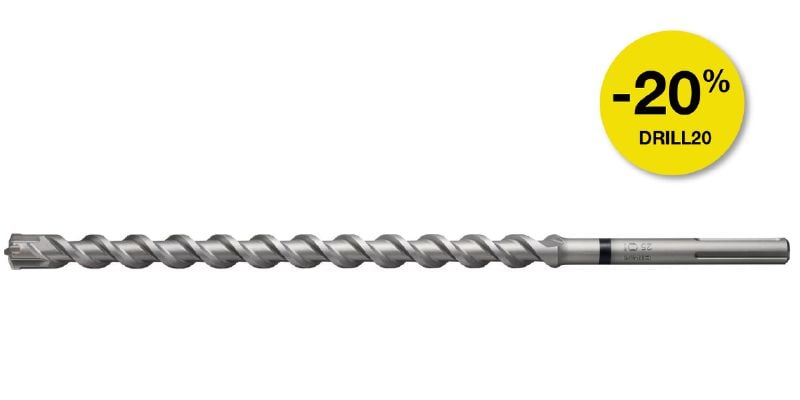

TE-Y (SDS Max) Imperial hammer drill bit
Hammer drill bit TE-Y 1 3/4" - 23" #346629
Premium SDS Max (TE-Y) hammer drill bit with carbide tip for drilling holes into concrete
- Connection end: TE-Y (SDS Max)
- Base material: Concrete, Masonry, Brick, Limestone
- Working mode: Hammer drilling
premium
Customers also searched for concrete bit , masonry drill bit , hammer drill bit , SDS Max bits or concrete drill bit .
Choose options
Diameter
- 44.45 mm
Working length
- 448 mm
Length
- 584 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted (before tax)
TWD 11,352
TWD 11,352 / 1
Technical Data
Connection end
TE-Y (SDS Max)
Base material
Concrete, Masonry, Brick, Limestone
Working mode
Hammer drilling
Head shape
2 Cutters
Head material composition
Tungsten carbide
Number of cutting edges
2
Diameter
44.45 mm
Length
584 mm
Working length
448 mm
Product Class
Premium
Features & Applications
Features
- Short transition from carbide tip to helix delivers higher drilling speed
- Virtually trouble-free deep hole drilling thanks to rapid removal of dust and fragments
- Carbide tip ruggedly embedded in the helix
- Short transition between the drill bit head and flutes for fast drilling
- Carbide tip securely embedded in the steel body
Applications
- Drilling through-holes and penetrations in concrete and masonry in the plumbing, heating and air-conditioning systems installation trades
Related Products
Extension for SDS Max (TE-Y) hammer drill bits - 2 components required (TE-FY extension plus TE-Y-AD adapter)
