DD 500-CA Core drill

Diamond coring tool DD 500-CA 400V #2095273

Configurator
Technical Data
Documents
Features & Applications
Related Products

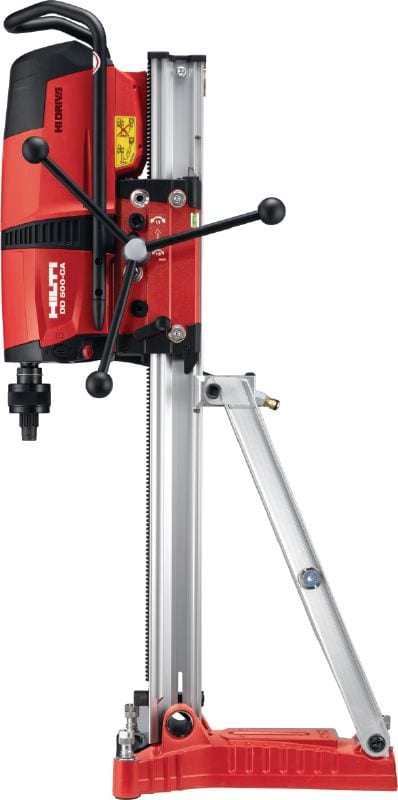

DD 500-CA, BL chuck, Diamond coring tool
BL chuck
BL chuck
DD 500
DD 500
Coring with DD AF-CA

Three-phase heavy-duty diamond coring machine with high-frequency motor and optional auto-feed unit for rig-based concrete coring from 82-600 mm (3-7/32 - 23-5/8”) in diameter

  • Diameter range: 82 - 600 mm
  • Rated input voltage: 400 V
  • Base material: Concrete, Reinforced concrete

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 229,680
TWD 229,680 / 1

Technical Data

Diameter range
82 - 600 mm
Rated input voltage
400 V
Base material
Concrete, Reinforced concrete
Operation mode
Rig-based drilling system
Rated input power
5500 W
Number of gears
10
No load RPM
gear 1: 265 rpm; gear 2: 531 rpm; gear 4: 571 rpm; gear 5: 510 rpm; gear 6: 429 rpm; gear 7: 367 rpm; gear 8: 327 rpm; gear 9: 265 rpm
Weight according EPTA-Procedure 01/2003 without battery
16.6 kg
Weight of complete system
37 kg
Dimensions (LxWxH)
608 x 192 x 216 mm
A-weighted emission sound pressure level
100 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD)
4.5 m/s²
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction DD 500-CA (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese [ 16.9 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]

Features & Applications

Features

  • Powerful high-frequency motor with electronic speed control for optimum power delivery over the entire diameter range
  • Compatible with the DD AF-CA automatic feed unit that makes drilling a highly efficient and fully automated process
  • Iron Boost: for a quick performance boost with increased torque when drilling through rebar
  • Thanks to IP 55 water spray protection, drilling can be carried out under adverse conditions
  • Operation within the optimum power band, for peak performance and longer core bit life, is easy with the aid of the LED power indicators

Applications

  • Drilling through-holes and penetrations
  • Manhole openings
  • Deep hole drilling
  • Stitch coring for installing cable trays
  • Large openings for water drainage pipes etc.
