INJECTABLE EPOXY ANCHOR FOR USE IN CRACKED CONCRETE AND UNDER SEISMIC CONDITIONS

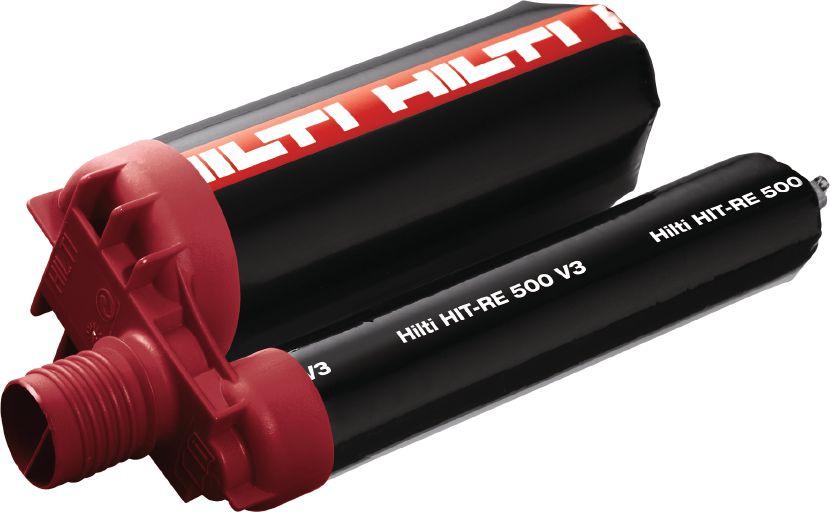

Hilti HIT-RE 500 V3 sets new standards for post-installed rebar and anchoring applications
Fifteen years ago, Hilti set legendary standards for designers and contractors alike with HIT-RE 500 – one of the first injectable epoxy anchors for post-installed rebar and anchoring applications. And because our customers needed the same high performance and reliability in cracked concrete and seismic applications, we introduced HIT-RE 500-SD for fastening under these conditions.
The new HIT-RE 500 V3 delivers performance and safety in design while making installation even easier and faster than ever before.
||Cracked and un-cracked concrete|
|Recommended applications||Post-installed rebar connection|
|All anchoring applications|
|Category||Slow cure epoxy injection mortar|
|Curing time at +20°C||7 hours
|Working time at +20°C||30 min.
||ETA-16/0143 for Anchoring
|ETA-16/0142 for Post-installed rebar
|Load type||Static, seismic
|Anchor diameters||M8 – M30
|Rebar diameters||Ø8 - Ø40 mm./ #3 - #10
|SafeSet with Hilti hollow drill bit||Yes|
|Hammer drill bit||Yes|
|Base material condition|
