Ultimate-performance through-set undercut anchor for dynamic loads (stainless)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / Test reports: ETA, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Customers also searched for self-undercutting anchor or undercut anchor.

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / Test reports
ETA, ICC-ES report (concrete), Nuclear (NQA-1), Seismic
Fatigue loading
Yes
PROFIS Software
Yes
Type of fixing
Through-fastening

Documents

Features & Applications

Features

  • Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to low expansion forces
  • Self-undercutting facilitates fast and reliable installation without the need for additional tools
  • The keying effect provides a secure hold even in cracked concrete under dynamic loading
  • Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals

Applications

  • Safety-relevant, heavy-duty fastening for dynamic loading in cracked or uncracked concrete and corrosive environments, including applications in nuclear power plants

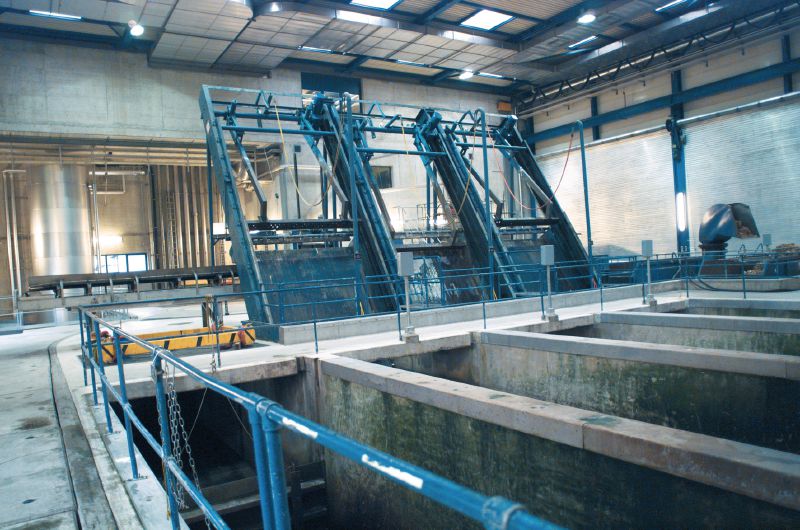

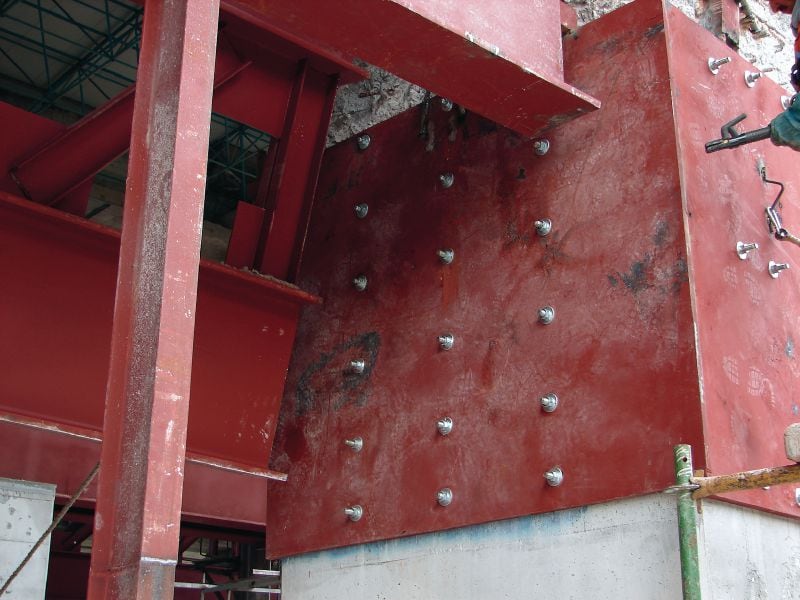

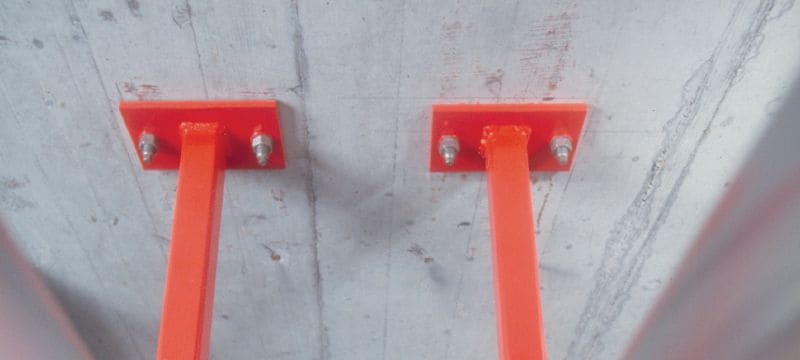

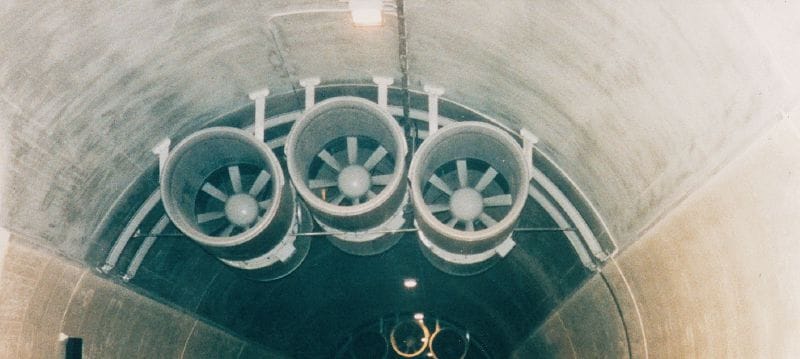

  • Anchoring supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.

For approval or certificate information, please see individual items.
