X-ENP HVB Shear connector nail

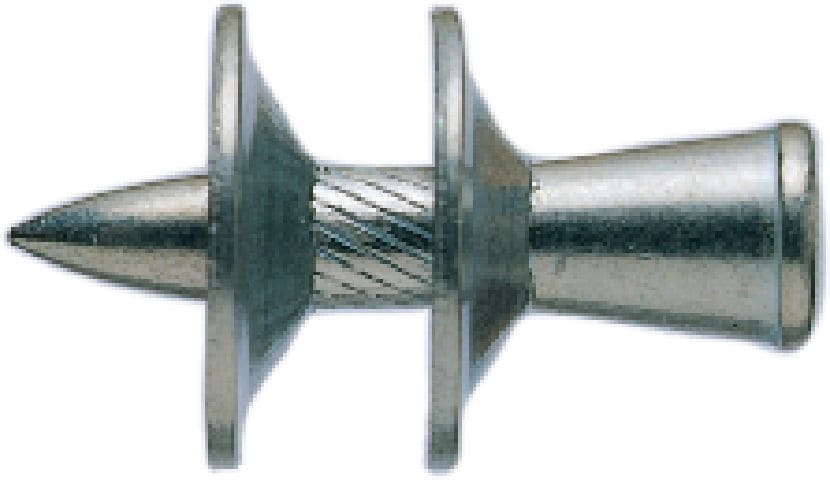

Sheet metal nail X-ENP-21 HVB #283512

Single nail for fastening shear connectors to steel structures with powder-actuated nailers

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Customers also searched for shear connector nailshear connector fastener or powder actuated.

Choose options

Fastener shank length
  • 21 mm
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)

TWD 3,696

TWD 37 / 1

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
ABS, ETA, FM, IAPMO, ICC-ES, ITB, LR, MLIT, SDI, UL
For use with (tools)
DX 860 ENP
Product Class
Ultimate

Documents

Features & Applications

Features

  • Economical alternative shear connector compared to stud welding – no expensive equipment required
  • Portable solution which can be moved around the jobsite easily without the need for pulling electric cables
  • Ideal for renovating old buildings where welding on existing cast-iron beams can be problematic
  • Hilti web-based software available to aid optimum design in meeting the load requirements
  • Increased productivity – quick set-up and usable in all weather conditions

Applications

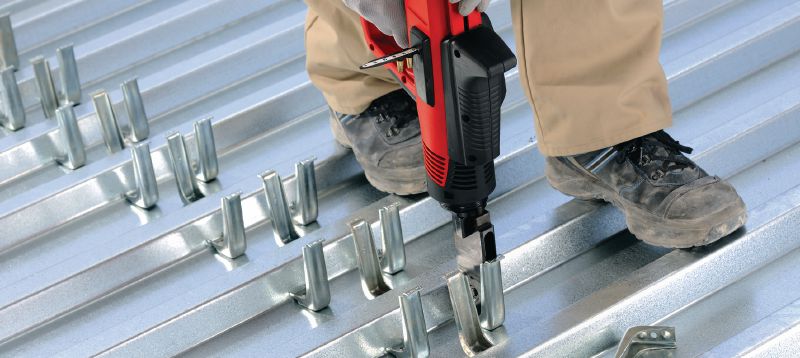

  • Fastening shear connectors to structural steel to resist shear forces and increase shear loading capacity in composite structures
