MP-SRNI Light-duty pipe clamp

Pipe ring MP-SRNI 21 M8 stnls #374187

Configurator
Technical Data
Documents
Features & Applications
Related Products
14657.tif
18065.tif
60290_S18.eps

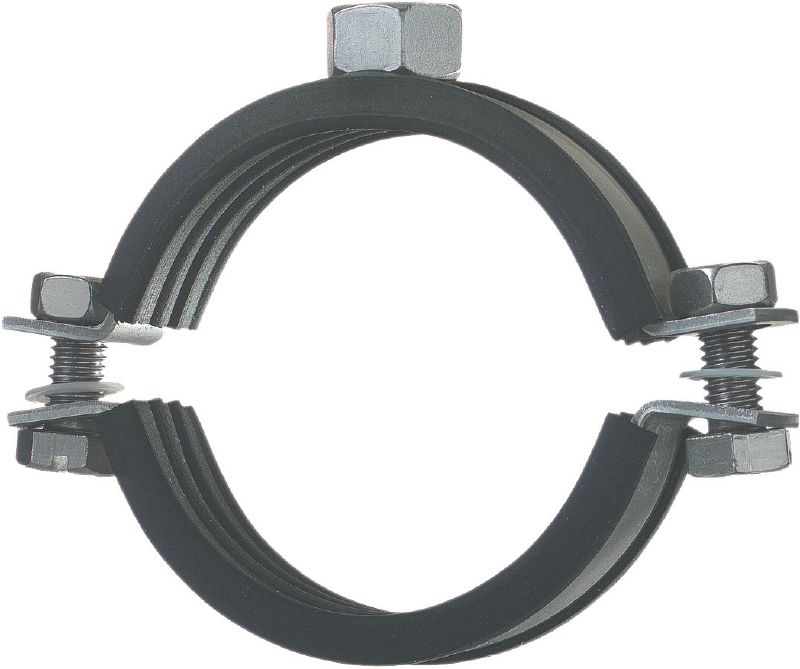

Stainless steel (A4) pipe clamp with sound insulation for light-duty applications

  • Clamping Range - D: 19 - 23 mm
  • Thread connection - M: M8
  • Maximum load - F: 1300 N
premium

Choose options

Clamping Range - D
  • 19 - 23 mm
Thread connection - M
  • M8
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 5,350
TWD 214 / 1

Technical Data

Details
Technical illustrations
Clamping Range - D
19 - 23 mm
Thread connection - M
M8
Maximum load - F
1300 N
Noise reduction
15 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness Insulation Material
50° ±5° Shore A
Clamping screw
M8
Tightening torque
2 Nm
Cross Section Thickness - s
2 mm
Cross section width - b
17.5 mm
Width - B
61 mm
Product Class
Premium
Distance center pipe to top - h
22 mm

Documents

pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Higher resistance to corrosion (A4 stainless steel)
  • Short connection head allows installation close to a wall, floor or ceiling
  • Pipe ring with verified fire resistance as per DIN 4102, part 2
  • Closure screw secured to help prevent loss

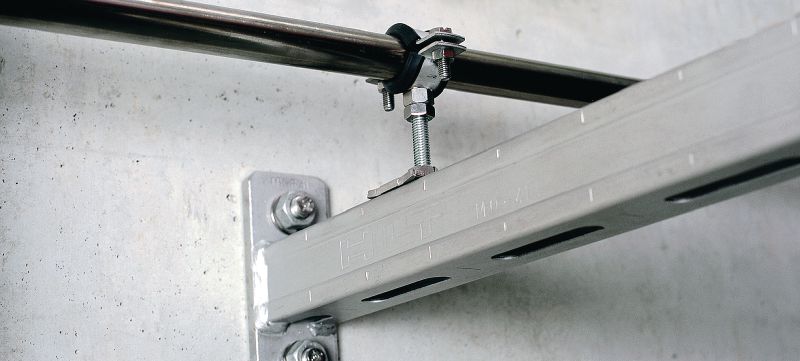

Applications

  • Light-duty pipe installations up to 2" (or 64mm)
  • Heating, plumbing and industry applications in corrosive environments
  • Mounting pipes in food industry (except production) and in water treatment
