MP-MRXI Heavy-duty pipe clamp

Pipe ring MP-MRXI 244.5 M16 stnls #374213

Configurator
Technical Data
Documents
Features & Applications
Related Products
MP-MRXI
17569.tif
60290_S21.eps

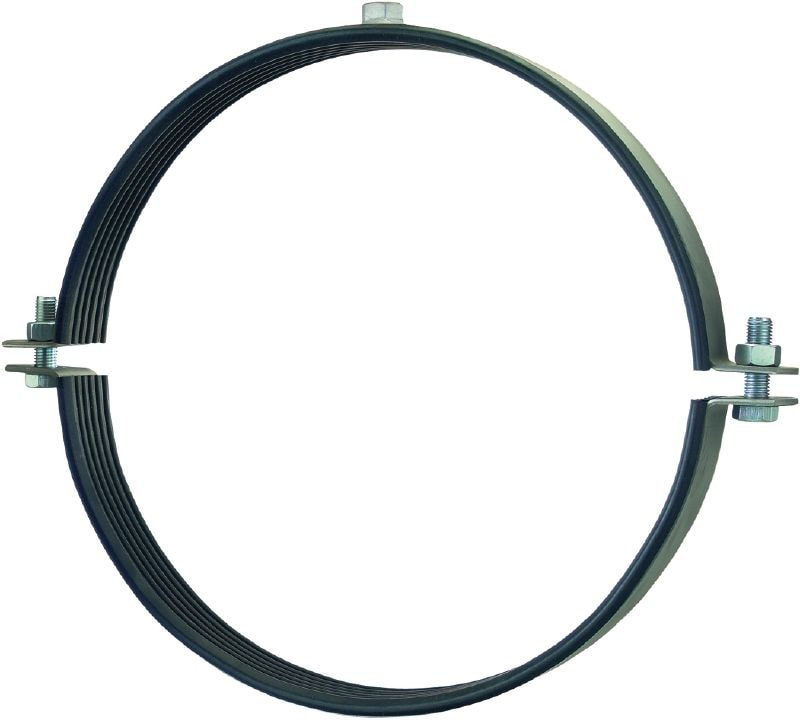

Stainless steel (A4) pipe clamp with sound insulation for extra heavy-duty applications

  • Clamping Range - D: 244 - 253 mm
  • Thread connection - M: M16
  • Maximum load - F: 10000 N
premium

Choose options

Clamping Range - D
  • 244 - 253 mm
Thread connection - M
  • M16
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 34,580
TWD 3,458 / 1

Technical Data

Details
Technical illustrations
Clamping Range - D
244 - 253 mm
Thread connection - M
M16
Maximum load - F
10000 N
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness Insulation Material
50° ±5° Shore A
Clamping screw
M16
Tightening torque
20 Nm
Cross Section Thickness - s
4 mm
Cross section width - b
50 mm
Width - B
355 mm
Distance between holes - A
317 mm
Product Class
Premium
Distance center pipe to top - h
148 mm

Documents

Documentation
Approval document
pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Solid connection head, welded all around
  • Strong clamping screws for high load values
  • Non-slip, pre-fitted profiled rubber inlay
  • Suitable for installing pipes under dynamic loading if used with vibration-damping components
  • High resistance to corrosion (A4 stainless steel)

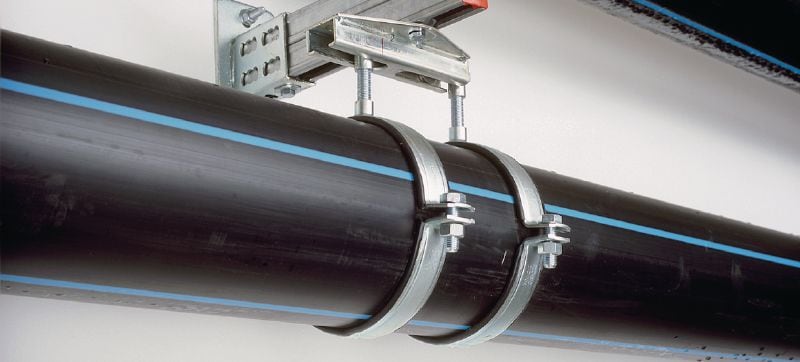

Applications

  • Heavy-duty pipe installations up to 508 mm
  • Installing industrial pipes
  • Mounting pipes in food industry (except production) and in water treatment
  • Heavy-duty plumbing and heating applications
