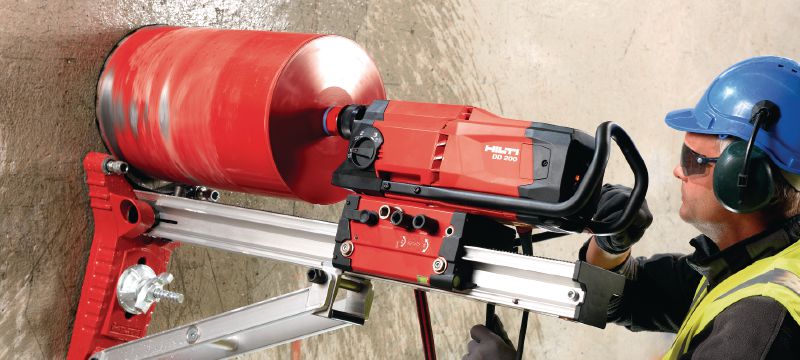

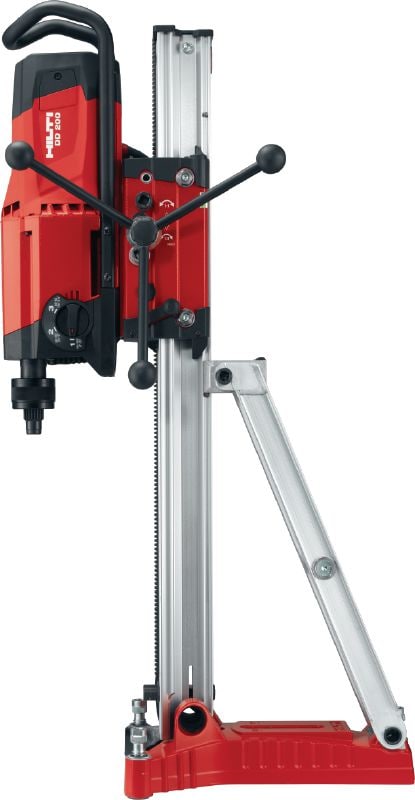

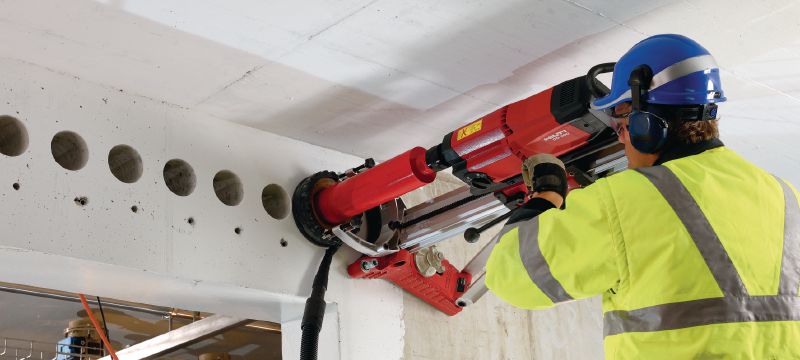

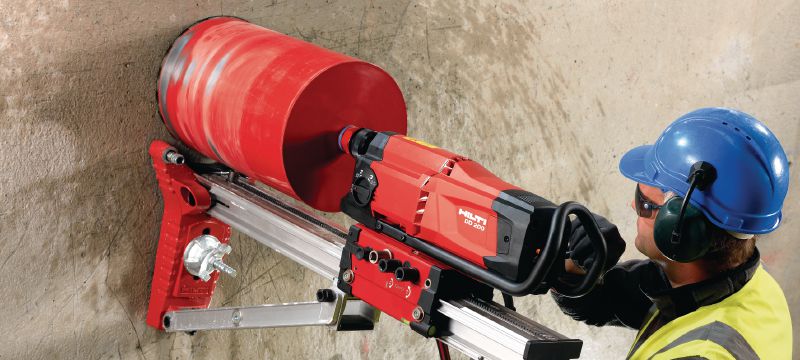

DD 200 G02 Core drill

Diamond coring tool DD 200 230V UN #2124717

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)

TWD 96,800

TWD 96,800 / 1

Technical Data

Diameter range

35 - 500 mm

Rated input voltage

230 V

Base material

Concrete

Operation mode

Rig-based drilling system

Rated input power

3200 W

Number of gears

No load RPM

gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm

Weight according EPTA-Procedure 01/2003 without battery

14.6 kg

Weight of complete system

36 kg

Dimensions (LxWxH)

630 x 190 x 215 mm

A-weighted emission sound pressure level

93 dB (A) ¹

Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD)

2.5 m/s²

Tri. vibr. value for drilling into concrete (wet) (ah,DD) - Corebit A

HCL/HCS

According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction DD 200 (02), Arabic, cn, German, English, Spanish, Finnish, French, Italian, Kazakh, Portuguese, Russian, Turkish, Ukrainian, Chinese [ 9.8 MB ]

Download

Features & Applications

Features

Air-cooled, heavy-duty drive unit with three-speed gearing and convenient controls
Optional BL quick-release connection lets you change core bits in seconds - no tools required (keyless system)
Designed for versatility – suitable for an extremely wide range of applications
Extremely sturdy, robust design
Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximize core bit life
