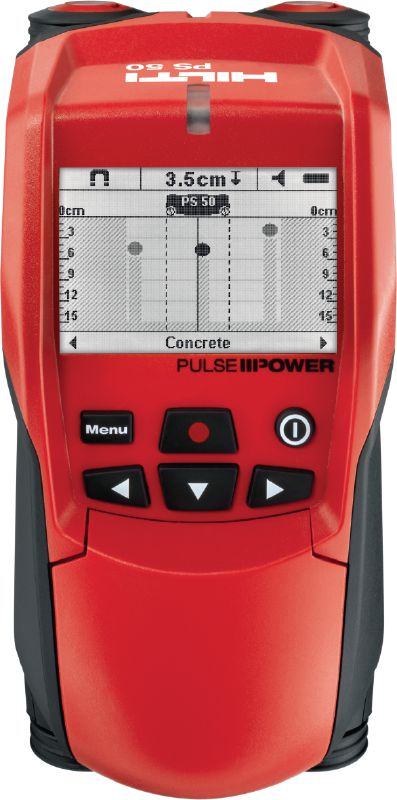

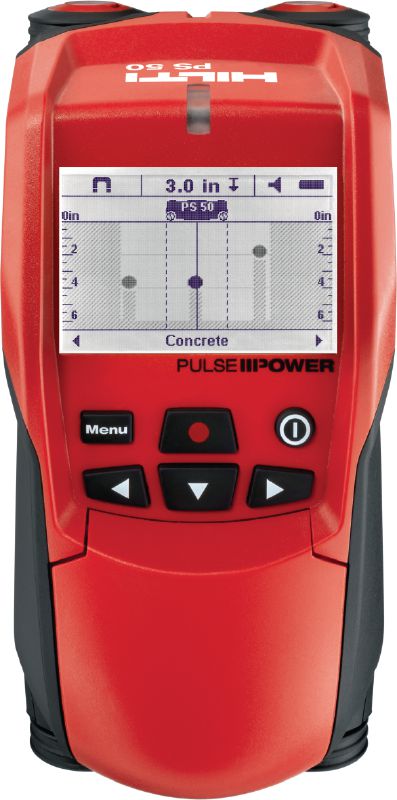

PS 50 Multidetector

Multidetector PS 50 #2075721

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
Multidetector, IF Award 2011
Multidetector, IF Award 2011
L062046.tiff
L062078.tiff
31949.tif
PS 38

Versatile detector to find rebar, pipes, live wire and wood for safe drilling

  • Accuracy of depth indication: ±3/8 in
  • Localization accuracy: ±5 mm
  • Minimum distance between two neighbouring objects: 40 mm

Customers also searched for detection scanner, concrete scanning, scanner or concrete scanner.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted (before tax)
TWD 52,536
TWD 52,536 / 1

Technical Data

Accuracy of depth indication
±3/8 in 1
Localization accuracy
±5 mm 2
Minimum distance between two neighbouring objects
40 mm
Operating temperature range
-10 - 50 °C
Maximum operating time
5 h
Weight with batteries
1 kg
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

pdf Operating Instruction PS 50 (01), cn, English, Japanese, Korean, Chinese [ 6.7 MB ]

Features & Applications

Features

  • Built-in display – shows location, embedment depth and type of detected objects at a glance
  • Detection of a wide range of objects thanks to the combination of multiple sensor technologies
  • User-friendly menu for selection of the appropriate base materials – universal, concrete, wet concrete, underfloor heating, drywall or hollow brick
  • Ergonomically designed and ruggedly built – shock, dust and water-resistant
  • Helps you drill right the first time – knowing where to drill helps avoid costly repairs, saves time and prevents drill bits from being destroyed by rebar

Applications

  • Detecting metal, wood or plastic objects and electrical conduits at depths up to 150 mm
  • Quickly and easily locating objects under the surface of structures prior to drilling, coring, sawing or slitting
  • Drilling anchor holes or through penetrations for pipe and cable installations with minimized risk of hitting concealed objects
  • Locating underfloor heating pipes or other pipe and cable runs
  • Setting anchors in hollow or thermally activated slabs

Services

Hilti Tool Service

  • 3 or free, get the tool serviced and cleaned in 3 days flat or repair is free of charge
  • After 2 years repair costs are capped
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 3-month no-cost period after each repair
More information about Tool Services

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
More information about LifeTime Services
